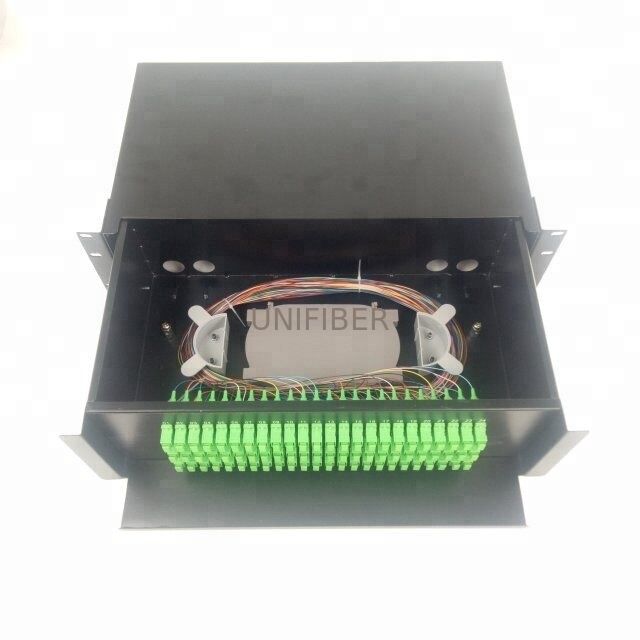

Rack Mount 4U 96 port fiber patch panel SC/LC

Rack Mount 4U 96 port fiber patch panel SC/LC
Rack Mount 4U 96 port fiber patch panel SC/LC Rack Mount 4U 96 port fiber patch panel SC/LC Rack Mount 4U 96 port fiber patch panel SC/LC Rack Mount 4U 96 port fiber patch panel SC/LC

Large Image :  Rack Mount 4U 96 port fiber patch panel SC/LC

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER
Certification: ROHS
Model Number: 96 port fiber patch panel
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 5~7 Business days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500pcs/day
Detailed Product Description
Material: Cold Rolled Steel Sheet Ports: 12,24,48,96
Product: 96 Port Fiber Patch Panel Color: Beige Or Black
Connector Type: SC,FC,LC,ST, Simplex Or Duplex Application: Rack Mount
High Light:

fiber optic cable termination patch panel

,

1u fiber patch panel

96 port fiber patch panell fiber terminal box can be applied in the branch connection of fiber termination,working as distribution box,19’’standard structure,rack mounting,available for the installation of FC,SC,ST,LC adaptors.
II,Structural features.
All property indexes are in accordance with National YD/T925—1997 Standard.
The body make use of cold rolling steel sheet Strong adhesive force, artistic and durable.
Distinctive design of 1-6 cable entrance and fiber exit of 1-24 cores assures flexibility.
Cable entrance are sealed with oil resistance NBR to increase the flexibility. Users can choose to prick the entrance and exit.
Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.
III,Main technical Specifications
External Size: (length×width×height) 430x300x(1U~7U)
optical fiber winding radius: ≥40mm
extra loss of fiber tray:none
fiber length left in tray:≥1.6m
fiber capacity: 12~288 cores
working temperature: - 400C ~ + 600C
lateral pressure-resistance: 500N
shock-resistance:750N



Model
Size(WxDxH)
Capacity
Adapters
Tray
Type
GPJ-01
483*250*1U
12/24 cores
SC/LC/FC/ST/E2000
12/24*1
Stick Type
GPJ-01
483*250*2U
48 cores
SC/LC/FC/ST/E2000
24*2
Stick Type
GPJ-01
483*250*3U
72/96 cores
SC/LC/FC/ST/E2000
24*3/4
Stick Type
GPJ-01
483*300*4U
96/144 cores
SC/LC/FC/ST/E2000
24*4/6
Stick Type
GPJ-02
483*300*1U
12/24 cores
SC/LC/FC/ST/E2000
12/24*1
Sliding Type
GPJ-02
483*300*2U
48 cores
SC/LC/FC/ST/E2000
24*2
Sliding Type
GPJ-02
483*300*3U
96 cores
SC/LC/FC/ST/E2000
24*4
Sliding Type
GPJ-02
483*300*4U
96/144 cores
SC/LC/FC/ST/E2000
24*4/6
Sliding Type
GPJ-05
483*240*1U
12/24 cores
SC/LC/FC/ST/E2000
12/24*1
Rotary Type
GPJ-05
483*240*2U
48 cores
SC/LC/FC/ST/E2000
24*2
Rotary Type
GPJ-05
483*240*3U
96 cores
SC/LC/FC/ST/E2000
24*4
Rotary Type
GPJ-05
483*300*4U
96/144 cores
SC/LC/FC/ST/E2000
24*4/6
Rotary Type
