ABS+PC 8/16 Port FTTH Outdoor Fiber optic break out box

ABS+PC 8/16 Port FTTH Outdoor Fiber optic break out box
ABS+PC 8/16 Port FTTH Outdoor Fiber optic break out box ABS+PC 8/16 Port FTTH Outdoor Fiber optic break out box ABS+PC 8/16 Port FTTH Outdoor Fiber optic break out box

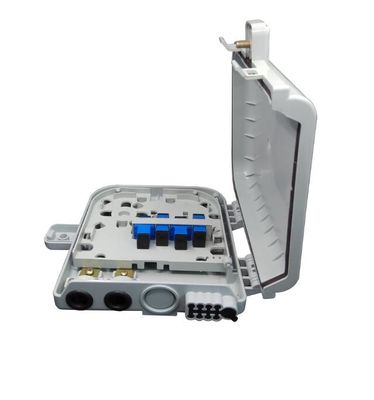

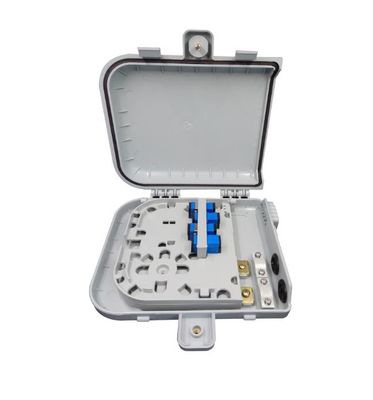

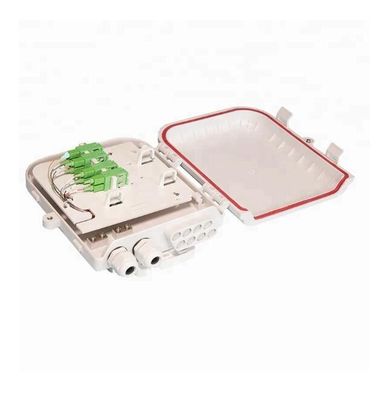

Large Image :  ABS+PC 8/16 Port FTTH Outdoor Fiber optic break out box

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER
Certification: ROHS
Model Number: FTTH Outdoor Fiber optic break out box
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 5~7 Business days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
Product: FTTH Outdoor Fiber Optic Break Out Box Max Capacity: 8/16
Material: ABS+PC Color: Gray
Connector: SC/LC Waterproof Grade: IP65
High Light:

fiber optic distribution box

,

optical network terminal box

ABS+PC 8/16 Port FTTH Outdoor Fiber optic break out boxs are applicable in FTTH project; Suitable for corridor, basement, room and building's outer walls application; It may distribute cables after installed splitters, it also may draw out room fiber optic cables by direct or cross –connections. It is with the function of mechanical splice, fusion splice, light splitting, wiring distributions



Features
Wall and pole mountable, suitable for indoor and outdoor use

Up to 16 FTTH drops



Wall mounted and pole mounted 2 inlet ports, 16outlet ports

Fully closed structure, simple and beautiful shape
Adopted high quality ABS plus PC material

Good property of dustproof, waterproof, moisture proof
Suitable for SC and LC duplex adapter
Flexible splice tray which is convenient for operation and maintaining



Application

FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks



Model
Capacity
Size
FDB0216
16 port
260mm(W)x320mm(D)x90mm(D)
