FTTH Field Installable SC APC fiber quick connector

FTTH Field Installable SC APC fiber quick connector
FTTH Field Installable SC APC fiber quick connector FTTH Field Installable SC APC fiber quick connector FTTH Field Installable SC APC fiber quick connector

Large Image :  FTTH Field Installable SC APC fiber quick connector

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER
Certification: ROHS
Model Number: FTTH Field Installable SC APC fiber quick connector
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Blister Case
Delivery Time: 3-5 business days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs/day
Detailed Product Description
Product: FTTH Field Installable SC APC Fiber Quick Connector Connector Type: SC/UPC SC/APC
Cable Type: 2.0mm 3.0mm Cable, 3x2mm Flat Cable RL: >55dB
IL: <0.3dB Fiber Mode: Single Mode
Application: FTTH
High Light:

quick connect fiber optic connectors

,

industrial fiber optic connectors

FTTH Field Installable SC APC fiber quick connector are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either Single-mode or Multimode optical fibers. The Field Assembly Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers. Our Field Assembly Optical Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and Multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with SPC or APC ferrules.



Features:

Factory-installed fiber stub.
No epoxy and polishing required, No special tools needed when installed.
Allows up to three re-termination result.
Easily installed, Quick and easy fiber termination in the field.
Only 30 seconds needed to learn the process of installation and making.
Cost effective, Warranty: One year.
Fast connecting and repeat, No special tools needed when installed.
Can be made on-site without splicing connectors.


Application:

FTTH & FTTx;
Passive Optical Networks;
Broadband, CATV.

ITEM Technical Parameters
Applicable for Drop cable / Indoor cable
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter SM(9/125), MM(50/125, 62.5/125)
125μm ( 657A & 657B )
Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm)
Return loss > 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber >5 N
Fastening strength of naked fiber holder >10 N
Tensile strength >50 N
Using temperature -40~+75°C
On-line tensile strength (20 N) IL 0.5dB RL 5dB
Mechanical durability (500 times) IL 0.5dB RL 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times) IL 0.5dB RL 5dB

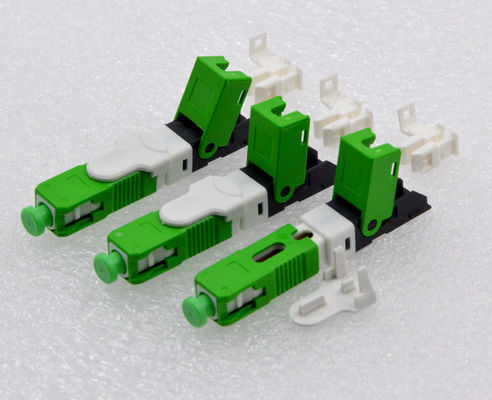

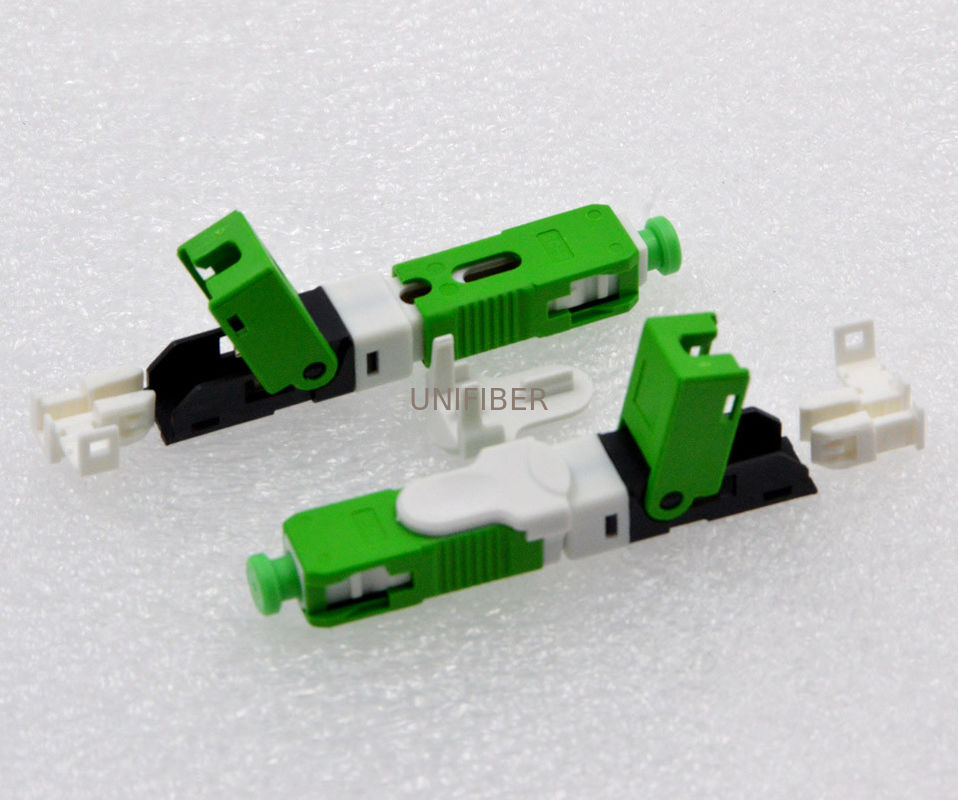

FTTH Field Installable SC APC fiber quick connector 0FTTH Field Installable SC APC fiber quick connector 1
