| Fiber Count: | 4/6/8/12 Fibers | Pigtail Color: | 12 Colors |
|---|---|---|---|
| Connector: | LC SC FC ST | Fiber Type: | G652D G657A |
| Length: | 1m,1.5m,3m Or Customized | ||
| High Light: | optical fiber pigtail,duplex pigtail |
||

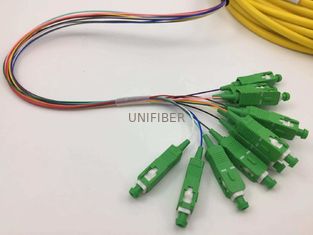

SC/APC single mode fiber optic pigtail, 12pack multi color fibre optic pigtail, 900um G657A yellow
We manufacturing all kinds of fiber optic pigtails for splicing application, includes 1fiber, 4/6/8/12 fiber pack with different connectors of SC, LC,FC, ST ,PC or APC polish type. These can be come with singlemode, multimode or OM3, with 900um tight buffer PVC or LSZH jacket.
FEATURES
1. Different fiber diameter for option: 0.9mm, 2mm or 3mm
2. Any length is available: 1m,1.5m or other length you required.
3. Telecom level and insertion loss below 0.3 db.
4. SC,LC,FC,ST connector for option.
5. The pigtail corresponds to the international standard IEC 874-10.
APPLICATION
1. Telecommunications
2. CATV, LAN, MAN, WAN, Test &Measurement
3. Military industry
4. Medical
Parameters
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
