Product Details:
Payment & Shipping Terms:
|
| Material: | Cold Rolled Steel Sheet | Ports: | 12,24,48,72,144 |
|---|---|---|---|
| Application: | 19" Rack Mount | Color: | Beige Or Black |
| Connector Type: | SC,FC,LC,ST, Simplex Or Duplex | ||
| High Light: | fiber optic cable termination patch panel,1u fiber patch panel |
||

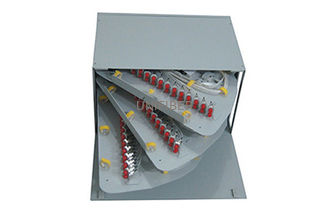

19" Rotary 24/48/72/144 port fiber optic patch panel rack mount
Fiber optic patch panel is modulized design with drawable trays inside and cold-rolled steel box. It could be pre-installed with various kinds of fiber optic adapters and pigtails. It is ideal for indoor fiber optic cables connection storage, distribution and management.
Features:
Can be used in 19'', 23'' standard distribution frame
Standard size, can be rackmount and wallmount
Splice tray inside changeable
Various panel plate to fit different adapter interface
Suitable for ribbon and single fiber
Front mark on the plate is easy for identification and operation
Application:
Fiber to the home (FTTH)
Telecommunications subscriber loop
LAN/WAN
CATV
| Model No. | Fiber count | Height | A | B |
Weight(kg) Cold-roll steel |
Weight(kg) Aluminum |
| ODF-RW1U24-B | 24C | 1U | 31.8 | 44.2 | 13.0 | 5.1 |
| ODF-RW2U48-B | 48C | 2U | 44.5 | 88.2 | 10.3 | 4.5 |
| ODF-RW3U72-B | 72C | 3U | 88.9 | 133.1 | 7.5 | 3.9 |
| ODF-RW4U96-B | 96C | 4U | 44.5 | 177.5 | 5.0 | 2.7 |
