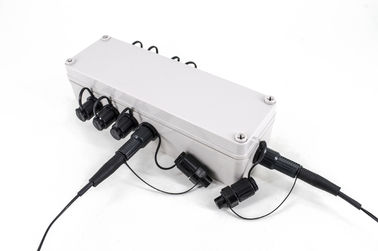

IP67 Waterproof Outdoor FTTH Terminal Box Multi - Ports With Mini SCConnector

China Shenzhen Unifiber Technology Co.,Ltd certification
China Shenzhen Unifiber Technology Co.,Ltd certification
I'm Online Chat Now

IP67 Waterproof Outdoor FTTH Terminal Box Multi - Ports With Mini SCConnector

IP67 Waterproof Outdoor FTTH Terminal Box Multi - Ports With Mini SCConnector
IP67 Waterproof Outdoor FTTH Terminal Box Multi - Ports With Mini SCConnector IP67 Waterproof Outdoor FTTH Terminal Box Multi - Ports With Mini SCConnector

Large Image :  IP67 Waterproof Outdoor FTTH Terminal Box Multi - Ports With Mini SCConnector

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER or OEM
Certification: ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: carton box
Delivery Time: 3-5days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/day
Detailed Product Description
Material: ABS+PC Color: Grey (color Can Be Customized)
Ports: Multiports Connector: Mini IP SC,Optitap ,ODVA Or H Connector
Structure: Open Type Sealing Way: TPE Seals
Installation Method: Overhead, Hanging Size (H*W*D)mm: 250* 80*70mm
High Light:

fiber optic junction box

,

optical network terminal box

Outdoor IP67 waterproof FTTH terminal box with Mini SC waterproof connector



Description

The equipment is used as a termination point for the feeder cable to connect with drop
cable in FTTx communication network system. The fiber splicing, splitting, and distribution
can be done in this box, and meanwhile it provides solid protection and management for
the FTTx network building.





Features
(1). Insertion loss:SC/LC≤0.3dB ,MPT/MPO≤0.5dB,Return loss:≥50dB.
(2). Tensile strength:> 50 N
(3). Job stress: 70 kpa to 106 kpa;
(4). Using the temperature:- 40 ~ + 75 ℃
(5). Relative humidity: ≤85% (+ 30 ℃).
(6). Protection grade: IP67
(7). Internal inventory redundant optical fiber, convenient in operation and maintenance.
(8). Optical fiber can be welding or cold, the applicable scope is wide,especially suitable for the use of
multi-storey and high-rise tenants,easy to install, easy to install.
(9) Material: ABS new resistance fuel, quality assurance, the flame retardant performance accord with
standard of communication industry, flame retardant grade UL94V - level 0
(10). Suitable adapter : MIni-SC, H connector-SC, ODVA-LC,ODVA-MPO,ODVA-MPT.
(11). Structure: open type
(12). Color: grey (color can be customized)
(13). Sealing way: TPE seals
(14). Installation method: overhead, hanging.
(15). Size (H*W*D)mm : 250* 80*70mm
