Product Details:
Payment & Shipping Terms:
|
| Application: | Indoor Wall Mounted | Adapter Port: | SC/FC/LC |
|---|---|---|---|
| Max. Capacity: | 12/24/48/72 | Material: | Cold Roll Steel |
| Max. Capacity Of Splice Tray: | 12fiber | Max Q'ty Of Splice Tray: | 4 |
| High Light: | fiber optic junction box,optical network terminal box |
||

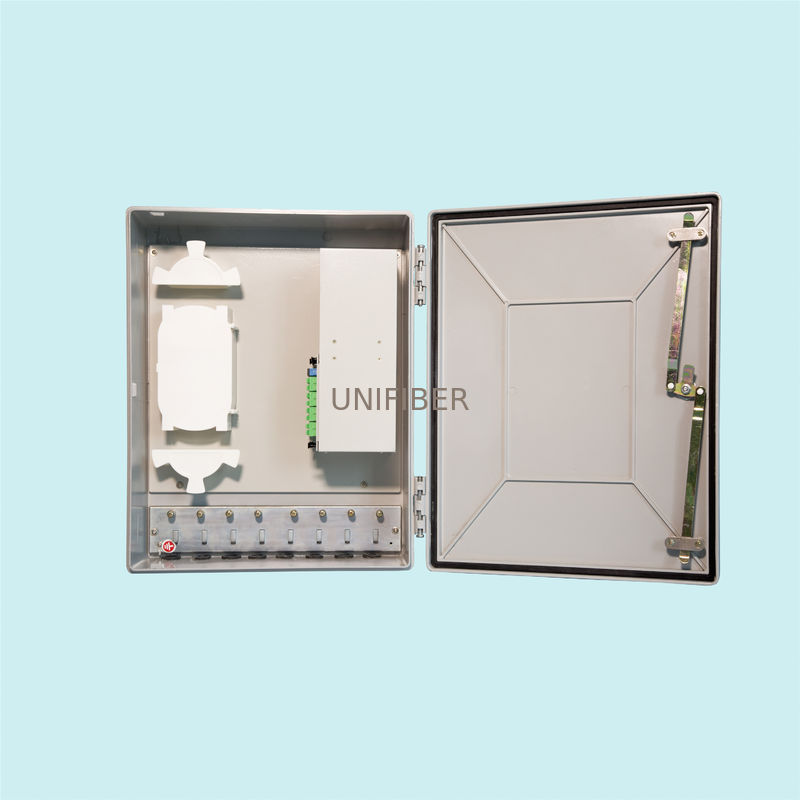

Outdoor fiber termination box, wall mounting terminal box fiber optic, load with PLC splitter insert cassette
GP(05) series are available for small capacity communication system,wall mounting.The cabinet is composed of 2 parts,one links with optical cables for fusion connection between optical cable and fiber pigtails.The other part links with patch cord.Whole range protected design for fiber lay to ensure the bending radius=40mm.
Specification
Working temperature:-25℃ ~ +40℃
Storage temperature:-25℃ ~ +55℃
Relative humidity:≤85% (+30℃)
Atmospheric pressure:70 ~ 106 kpa
Features
Suitable for 6,12 , 24 and 48 fiber connection
Easy installation and maintenance
Reliable device to strip,protect,fix and earth optical fiber
Splice adoptst separate sructure, it is convenient for expansion and maintenance
| Type | Size(mm) H*W*D | Max capacity | Outer carton dimension | Outer cartion weight |
| GP(05)A-24 | 455*405*80 | 24 | 500*450*490/4pcs | 29.5 |
| GP(05)A-48 | 455*405*120 | 48 | 500*450*490/3pcs | 25.3 |
| GP(05)A-72 | 455*405*150 | 72 | 500*450*390/2pcs | 19.5 |
| GP(05)B-48 | 455*405*120 | 48 | 500*450*490/3pcs | 27 |
| GP(05)B-72 | 455*405*150 | 72 | 500*450*390/2pcs | 20.5 |
| GP(05)A-24A | 350*350*80 | 24 | 405*405*605/5pcs | 20.8 |
| GP(05)B-24B | 455*405*80 | 24 | 500*450*490/4pcs | 29 |
| GP(05)C | 350*300*80 | 12 | 405*355*605/5pcs | 19.5 |
| GP(05)D | 350*300*80 | 24 | 405*355*605/5pcs | 19.5 |
