Product Details:
Payment & Shipping Terms:
|
| Connector Type: | LC/SC/ST/FC | Jacket Material: | PVC/LSZH/OFNP |
|---|---|---|---|
| Fiber Count: | 4/6/8/12/24/48/72/144fibers | Breakout Diameter: | 0.9/2.0/3.0mm |
| Trunk OD: | 7.0-8.0mm/4.6-5.0mm | Fan-out Length: | 0.3/0.5m Or Customized |
| Cable Length: | Customized | Fiber Type: | G.652.D G657A |
| High Light: | pre connectorized fiber optic cable,terminating armoured cable |
||

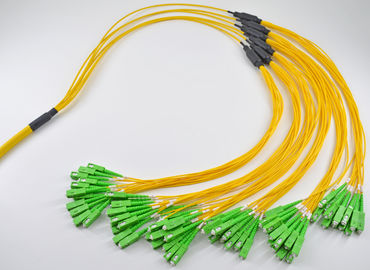

pre terminated cable, single mode 72core break-out patch cord, with 6x12 sub unit,trunk line interconnection
Pre-terminated indoor/outdoor fiber cable assembly is designed to support today's data needs while meeting tomorrow's ever-advancing network requirements. It's ideal for connecting the networks of two buildings through the use of an underground conduit, also installed in entrance facilities, It with Strong Protective Pulling Tube
Applications
Connection of trunk line
Local area networks
Wide area networks
High integrated equiement and devices
High density cable wiring system
Switching between trunk line and distribution line
Features
Small volume, high fiber density
Stable capability and high reliability
Excellent mechanical capability
4-144core available
0.9, 2.0, 3.0 fanout available
Protect the connectors and prevent the cable from twisting during the pull.
Quick & easy installation without special skills, reducing installation time.
High back reflection loss value
Parameters
|
Item |
SingleMode |
MultiMode |
|
Insertion loss |
≤0.2dB |
≤0.3dB |
|
Return loss |
PC≥50dB, APC≥55dB, UPC≥60dB |
|
|
Insert-pull test |
1000 times |
|
|
Repeatability |
≤0.1 |
|
|
Tensile strength |
≥10kg |
|
|
Operating temperature |
-40℃~ +85℃ |
|
|
Ceramic ferrule spec |
125.5um concentricity deviations:≤1μm |
127um concentricity deviations:≤3μm |
|
Suitable fiber |
9/125μm |
50/125μm, 62.5/125μm |
