Fc To Lc Fiber Optical Patch Cord Simplex High Return Loss 1.2/2.0/3.0mm Diameter

China Shenzhen Unifiber Technology Co.,Ltd certification
China Shenzhen Unifiber Technology Co.,Ltd certification
I'm Online Chat Now

Fc To Lc Fiber Optical Patch Cord Simplex High Return Loss 1.2/2.0/3.0mm Diameter

Fc To Lc Fiber Optical Patch Cord Simplex High Return Loss 1.2/2.0/3.0mm Diameter
Fc To Lc Fiber Optical Patch Cord Simplex High Return Loss 1.2/2.0/3.0mm Diameter Fc To Lc Fiber Optical Patch Cord Simplex High Return Loss 1.2/2.0/3.0mm Diameter

Large Image :  Fc To Lc Fiber Optical Patch Cord Simplex High Return Loss 1.2/2.0/3.0mm Diameter

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: FC
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Individual package
Delivery Time: 3~5 business days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
Fiber Type: SM/MM/OM3/OM4 Cable Length: 0.5/1/2/3m Or Customized
Cable Jacket: PVC,LSZH,Plenum (OFNP) Jacket Colors: Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow
Fiber Count: Simplex Or Duplex Brand: UNIFIBER Or OEM
High Light:

fiber optic jumper cables

,

fiber optic network cable

Fc fiber optic patch cord, fc to lc fiber patch cord, fiber optic patch cord supplier



Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.



Application:

Telecommunication networks
CATV

Broadband network
Data Centre

LAN and WAN
FTTX



Features:

High return loss;

Low insertion loss;

Ceramic Ferrule;

Good repeatability and and exchangeability

Excellent Polished and 100% tested;

Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.







Order information

1. Connector: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA Connector Optional.
2. Ferrule end-face: PC, UPC, APC optional.
3. Fiber mode: 9/125um Singlemode, Multimode(OM2, OM3, OM4, OM5) optional.
4. Fiber Count: simplex, duplex optional.
5. Cable diameter: 3.0mm, 2.8mm, 2.0mm, 1.8mm, 1.2mm, 0.9mm optional.
6. Cable color: Yellow, ivory, white, blue, orange, aqua, pink color optional.
7. Cable length: 0.5m to 50m optional.
8. Cable jacket: PVC or LSZH optional.





Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652/G655/G657 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80

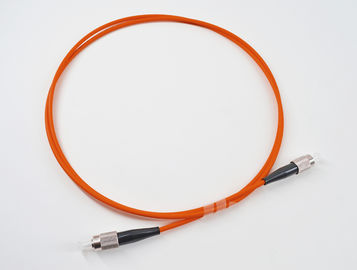

Fc To Lc Fiber Optical Patch Cord Simplex High Return Loss 1.2/2.0/3.0mm Diameter 0Fc To Lc Fiber Optical Patch Cord Simplex High Return Loss 1.2/2.0/3.0mm Diameter 1
