Product Details:
Payment & Shipping Terms:
|
| Pigtail Color: | 12 Colors | Fiber Type: | G652D G657A |
|---|---|---|---|
| Length: | 1m,1.5m,3m Or Customized | Fiber Count: | 4/6/8/12 Fibers |
| Connector: | LC SC FC ST | Polish Type: | UPC Or APC |
| High Light: | optical fiber pigtail,duplex pigtail |
||

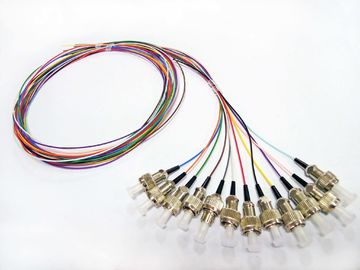

FC/ST/SC/LC fiber optic pigtail cables, 4/6/8/12/24 core bundle/fanout fiber optic pigtail splicing
FEATURES
SC,LC,FC,ST connector for option.
Any length is available: 1m,1.5m or other length you required.
Different fiber diameter for option: 0.9mm, 2mm or 3mm
Telecom level and insertion loss below 0.3 db.
The pigtail corresponds to the international standard IEC 874-10.
APPLICATION
Telecommunications
CATV, LAN, MAN, WAN, Test &Measurement
Military industry
Medical
UNIFIBER provide various of fiber optic pigtails for your splicing application, includes 1fiber, 4/6/8/12 fiber pack with different connectors of SC, LC,FC, ST , with UPC or APC polish type. These can be come with singlemode, multimode or OM3, with 900um tight buffer PVC or LSZH jacket.
Parameters
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
