PP Material Optical Fiber Splice Protection Box , FTTH Drop Cable Splice Protector

PP Material Optical Fiber Splice Protection Box , FTTH Drop Cable Splice Protector
PP Material Optical Fiber Splice Protection Box , FTTH Drop Cable Splice Protector PP Material Optical Fiber Splice Protection Box , FTTH Drop Cable Splice Protector

Large Image :  PP Material Optical Fiber Splice Protection Box , FTTH Drop Cable Splice Protector

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER
Certification: ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Individual packing
Delivery Time: 3~5 business days
Payment Terms: T/T, Western Union
Detailed Product Description
Material: PC+ABS Size: 90*90*16mm
Capacity: 2 Pcs Pigtails Package: Natural Carton Packing
Certification: RoHS Warranty: 3 Years
High Light:

fiber optic junction box

,

optical network terminal box

   Optical Fiber Splice Protection Box, FTTH Drop Cable Splice Protector,ftth fiber optic terminal box

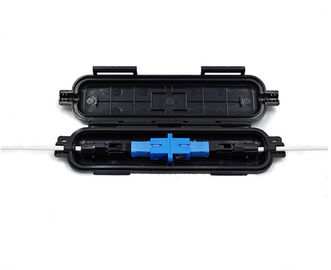

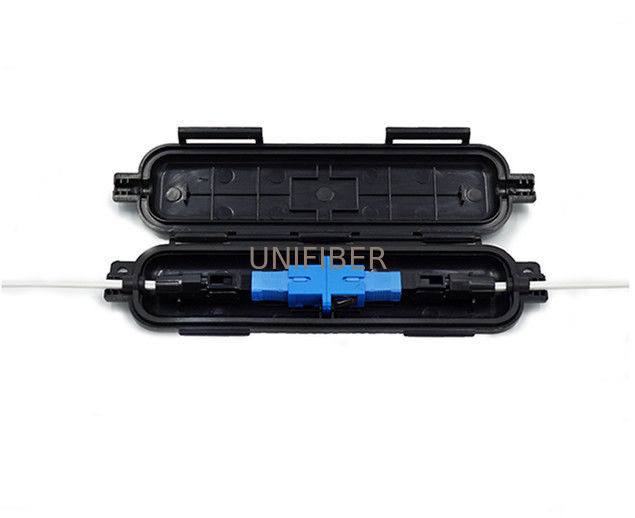

   Drop Cable Protect box is used for drop cable connecting, splice and protection. It can hold 1piece SC Simplex adapter, 2pcs SC fast connectors,         suitable for FTTH. It could be indoor or outdoor use, with good waterproof capacity. It is compact size, good appearance. Provides extremely                 economical and optimal protection for exposed single fiber connector



   Suitable for 2.0*3.0mm FTTH drop fiber cable and normal fiber cable.
   Max 2 fibers connection (LC Connector).
   Small size, easy installation.
   Waterproof IP65, dust proof.
   Indoor outdoor used.
   Size: 160*47.9*16mm

   2 mounting holes distance 150mm
   Both Made of high-quality PP Plastic, silicone ring seal between the cover and bottom.



Type UNF-1601-1A
Size(mm) W*D*H 106*47.9*16mm
Material PP
Scope of Application 3.0*2.0mm drop cable or indoor cable
IP Grade IP65
Adapter type SC Simplex Adapter; LC Duplex Adapter
Color White or Black
