Product Details:
Payment & Shipping Terms:
|
| Material: | SPCC(cold Rolled Steel Sheet) | Operating Temperature: | -20°C~+55°C |
|---|---|---|---|
| Painting Finish: | Powder Coat Matt Finish | Painting Color: | 9005: RAL Black |
| Fiber Mode: | G657A1; OM1; OM2; OM3; OM4 | Capacity: | 288 Port |
| Cassette Q'ty: | 12 | Application: | Rack Mount |
| High Light: | fiber optic cable termination patch panel,optical distribution frame |
||

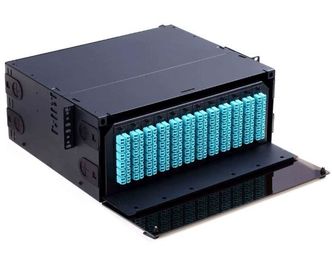

288 port 4U high density MPO/MTP fiber patch panel,fully loaded with LC duplex adapter, with transparent front door to protect fibers
UNIFIBER’s High Density (HD) Series patch panels offer an extra slot that accepts up to four adapter panels or MPO cassettes in the 1RU ~4U footprint. This design has been accomplished by staggering the mounting ears. The HD patch panels are ideal for high fiber count applications and will fit into any standard 19” or 23” rack by rotating the panel’s mounting ears.
Features
Modular design, up to 3 module boxes Used in the wiring box 19’rack mount
The pull-out design is easy to install the adapter panel or the LGX module
The panel is made of cold rolled steel plate
Application
Data communication and telecommunication networks.
Data centers, premise installations.
Indoor applications.
Ethernet, Fiber Channel , ATM , LAN and WAN .
Specification
| Size | 1U(44.5mm) | 2U(89.0mm) | 3U(132.0mm) | 4U(176.0mm) |
| Ports | 3 | 6 | 9 | 12 |
| Width | 482mm | |||
| Depth | 250mm | |||
| Net Weight | 2.75KG | 3.8KG | 4.35KG | 6.6KG |
| Gross Wright | 3.05KG | 4.1KG | 4.7KG | 7.1KG |
| Material | Cold Rolled steel or Aluminium | |||
| Color | Black, Grey, White | |||
| Complian to | RoHS, REACH SVHC | |||
