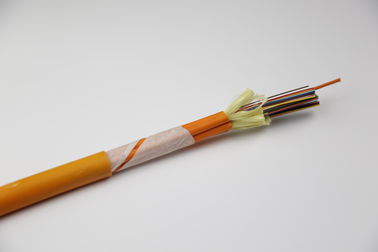

Soft 12 Core Multimode Fiber Optic Cable Indoor GJFJV Multi - Purpose Distribution

Soft 12 Core Multimode Fiber Optic Cable Indoor GJFJV Multi - Purpose Distribution
Soft 12 Core Multimode Fiber Optic Cable Indoor GJFJV Multi - Purpose Distribution Soft 12 Core Multimode Fiber Optic Cable Indoor GJFJV Multi - Purpose Distribution Soft 12 Core Multimode Fiber Optic Cable Indoor GJFJV Multi - Purpose Distribution

Large Image :  Soft 12 Core Multimode Fiber Optic Cable Indoor GJFJV Multi - Purpose Distribution

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS,CE,UL
Model Number: GJFJV
Payment & Shipping Terms:
Minimum Order Quantity: 1KM
Price: Negotiable
Packaging Details: Wooden drum.
Delivery Time: 3-5days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000km/month
Detailed Product Description
Fiber Counts: 12/24/36/48/72/96/144 Core Fiber Mode: Singlemode/multimode/OM2/OM3/OM4
Cable Structure: 0.9mm Tight Buffer Distribution Cable Application: Indoor Multi Purpose Distribution
Product Name: Fibre Optic Patch Cord Strength Member: Steel Wire
High Light:

aerial fiber optic cable

,

fiber optic ethernet cable

12 core multimode fiber optic cable,indoor GJFJV multi-purpose distribution breakout 48 36 24 12 fiber optic cable

GJFJV multi-purpose distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium,the tight buffer fiber wrapped with a layer of aramid yarn as strength member units and then is completed with a PVC or LSZH (Low smoke,Zero halogen,Flame-retardant) The tight buffer fibre is manufactured by sheathing the fibre with an appropriate buffer material. The diameter of Φ600μm or Φ900μm could be produced. The selection of top-quality fibre, specific production equipment and accurately designed tools ensure a good performance of the product.



Application:

Used in indoor cabling,especially used as distribution cable
Used in pigtails and patch cords
Used as interconnect lines of equipments,and used in optical connections in optical communication rooms and optical distribution frames



Features:

Good mechanical and environmental characteristics
Flame retardant characteristics meet the requirements of relevant standards.
The mechanical characteristics meet the requirements of relevant stands
Soft, flexible easy to splice and with big capacity data transmission



Parameters:·

No. of cable


8
12
24
36
48
Fiber Model


OM3





Tight lines

Material
PVC/LSZH






Thickness(±0.03)mm
0.32






Diameter(±0.06)mm
0.9





Center Strength Member

Material
FRP






Diameter(±0.1)mm
0.5
0.5
Strength Member

Material
Aramid Yarn





Inner Sheath

Material
PVC/LSZH






Diameter(±0.1)mm
0.8
0.8


Colour
Aqua





Outer Sheath

Material
PVC






Thickness(±0.1)mm
0.9
1
1
1.5
1.5


Colour
Aqua




Cable Diameter(±0.2)mm


5.8
6.2
8.5
15.1
15.1
Cable Wetght(±5)kg/km


31
41
60
238
235

Attenuation
850nm

dB/km
≤2.5





1300nm

≤0.7





Bandwidth
850nm

MHz.km
≥3500





1300nm

≥500





Allowable Tensile Strength
Short Term

N
660
660
660
1320
1320

Long Term

200
200
200
660
660

Allowable Crush Resistance
Short Term

N/100mm
1000
1000
1000
1500
1500

Long Term

200
200
200
300
300

Min. bending radius
Without Tension

10.0×Cable-φ





Under Maximum Tension

20.0×Cable-φ





Temperature range (℃)
Installation

-20~+60





Transport&Storage

-40~+70





Operation

-40~+70
