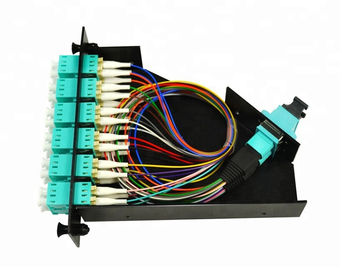

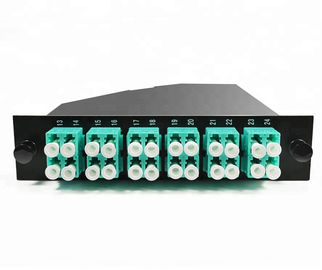

LGX MPO MTP Cassette Fiber Optic Patch Panel LC Duplex 2 MPO Adapter 1U Rack Mount

24-port LGX MPO MTP Cassette LC duplex 2 MPO adapter, load for 1U Rack mount mpo fiber patch panel

UNIFIBER Offers a variety of single mode and multimode MTP/MPO Cassettes. The standard cassettes can accommodate 12 and 24 port configurations with different sizes of cassettes are available feauring all fiber modes and connector options. They are pre-terminated, pre-tested, and come with 12- or 24-fiber MPO/MTP connectors on the back that break out tosingle or array connectors on the front. Cassettes are custom-built to your configuration needs and modules are custom-built to tomeet your specific application needs. Select from a variety of connectors including LC, SC, and MU for OM1, OM2, OM3, OM4, and OS2 deployment.

Application

Data center infrastructure
Storage area network - fibre channel
Parallel optics

FEATURE
All cassettes use either 24-fiber or 12-fiber low-loss MPO/MTP connectors on the back
100% factory tested with test results included with each cassette

Come with Standard Black LGX footprint styles and Available in Custom-Built Cassettes

Plug-and-play cassette eliminates the need for field termination or splices
MPO/MTP adapter swivel allows for easy cable routing and proper bend radius

Allow for a simple migration path to 40GbE and 100GbE networks with MPO/MTP cassettes

	Single mode		Multimode
	LC, SC, MU	MPO, MTP	LC, SC, MU	MPO, MTP
MAX IL	≤0.3dB	≤0.75dB	≤0.3dB	≤0.75

 Remark:

24-strand 24 fibers LGX= 1 x MPO/MTP-Adapter back to the cassette.
12-strand 24 fibers LGX= 2 x MPO/MTP-Adapter back to the cassette.
Color:

Connector: LC/SC/MU SM-Blue, APC-Green, MM-Beige, OM3-Aqua, OM4-Violet ; MPO/MTP SM-Green, MM-Beige, OM3-Aqua.

Adaptor: LC/SC SM-Blue, APC-Green, MM-Beige, OM3-Aqua, OM4-Violet ; MU-Brown ; MPO/MTP-Black
