Product Details:
Payment & Shipping Terms:
|
| Cable Diameter: | 7.0mm | Cable Jacket: | LSZH,PE,TPU,UV Resistance |
|---|---|---|---|
| Cable Length: | 1/3/5/10m Or Customized | Connector: | PDLC |
| Fiber: | Single Mode | Application: | FTTA FTTH FTTX |
| High Light: | waterproof cable assembly,fiber optic connector assembly |
||

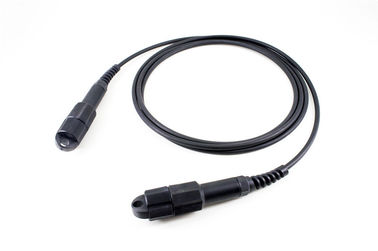

PDLC to PDLC duplex single mode waterproof fiber optic patch cord for wireless base station BBU/RRU cabling solution
PDLC connectors and required optical cables have become standard interface applications for 4G,5G and wireless base stations, such as remote wireless, optical fiber to antenna, etc. This product is not only suitable for these fields, but also for industrial, aerospace, national defense and other fields. The cable assembled by PDLC has been tested by salt spray. The waterproof grade reaches IP67. It is easy to install and transmit reliable data over a long distance under harsh environment.
Features
Low Insertion Loss, High Reliability;
Easy to Install with Removable Parts;
Water/Dust Proof,Anti Corrosion;
High Tensile Load Capability;
Excellent Termination Strength.
Applications
Fiber Optic Data Transmission System;
Military Tactcial Field;
Shipboard,aerospace;
Automotive Commercial.
PARAMETERS
| Model | SM | MM |
| Fiber Count | 2 core | |
| Polish | PC | |
| Housing Color | Blue or customized | Beige or customized |
| Test Eavelength | 1310/1550nm | 850/1300nm |
| Insertion Loss | less than 0.30dB | Less than 0.30dB |
| Return Loss | >50dB | >30dB |
| Durability (500 matings) | less than 0.2dB | |
| Cable OD | 7.0mm armored / non armored or customized | |
| Storage temperature | -20~70℃ | |
| Operating temperature | -40~85℃ | |
