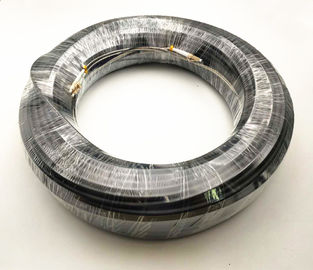

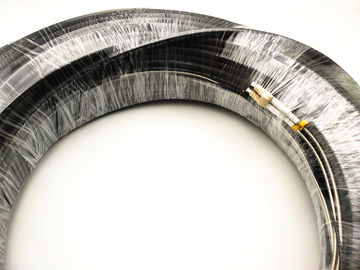

Duplex Multimode Fiber Optic Patch Cord DLC/UPC To DLC/UPC With Steel Armored Pigtails

Large Image : Duplex Multimode Fiber Optic Patch Cord DLC/UPC To DLC/UPC With Steel Armored Pigtails

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	LCLC

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Carton Box
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Cable Counts:	2 Counts Or 4 Counts	Cable Jacket:	LSZH,TPU,PE
Cable Diameter:	4.8mm Or 7mm	Cable Mode:	GJFJH
Cable Length:	1/3/5/10m Or Customized	Application:	CATV/base Station/GSM/FTTA
High Light:	waterproof cable assembly , fiber optic connector assembly

FTTA cpri DLC/UPC to DLC/UPC duplex Multimode fiber optic patch cord Φ4.8/7.0mm 100m LSZH with steel armored pigtails

The CPRI patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder,it with standard size for Duplex LC Connectors, and the outer housing with metal protective device. The connecting is safe and reliable. Also have the functions of waterproof, dustproof. This patch cords widely used in FTTA, Base station, and the outdoor waterproof condition.

Application
Good mechanical and environmental characteristics;

Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
Meet various requirements of market and clients.

Feature
Available Single mode and Multimode

Factory-assembled cables for a fast on-site installation

Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism;
IP68 protection, salt-mist proof, and EMI protection;

High shock, vibration, and mechanical resistance;
Broad temperature range and wide range of indoor and outdoor cables;
Easy, reliable and cost-effective installation.

Low insertion/return loss, steady optical transmitting.

APPLICATION
Deployment in Remote Radio Head cell tower applications

For connection between distribution box and RRH

Multi-purpose Outdoor

PARAMETERS

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥60dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃

Duplex Multimode Fiber Optic Patch Cord DLC/UPC To DLC/UPC With Steel Armored Pigtails 0
