Product Details:
Payment & Shipping Terms:
|
| Connector: | Waterproof ODC | Fiber Count: | 2 |
|---|---|---|---|
| Jacket: | Blue/black TPU | Waterproof Grade: | IP68 |
| Fiber Mode: | SM/MM | Application: | FTTA |
| High Light: | waterproof cable assembly,fiber optic connector assembly |
||

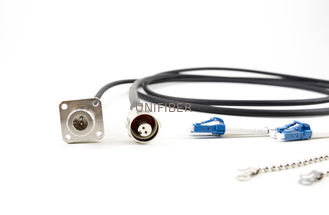

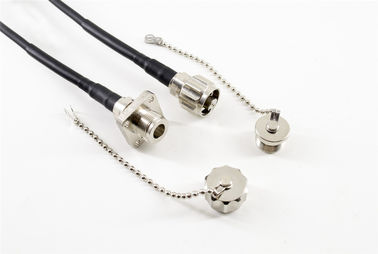

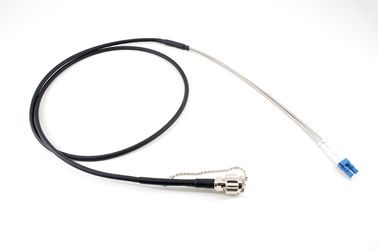

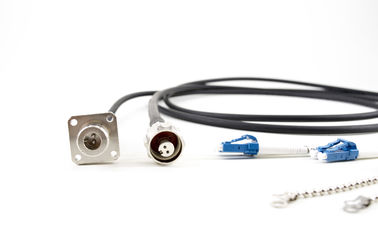

ODC-2 fiber optic connector outdoor waterproof 2 or 4 fibers plug / socket to duplex LC fiber optic patch cable assembly
ODC fiber optic patch cables with extremely robust outdoor connector are designed to withstand harsh environment such as mechanical loads, high thermal exposure, and demanding environments like rain, salt and splash water. It is known for their ease of installation and highest operation safety due to the robust and ruggedized design. ODC military grade cables are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions.
Features
Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism
High shock, vibration, and mechanical resistance
IP68 protection, salt-mist proof and EMI protection
Easy, reliable and cost-effective installation.
Broad temperature range and wide range of indoor and outdoor cables
Application
Far transmission wireless base station.
Video Surveillance system
Optical fiber sensor.
Railway signal control
Intelligent substation
Outdoor & Military communication equipment connection.
Oil field, mine communication connection.
Parameters
| Fiber Core | 2,4 | |||
| Mode | Singlemode | Multimode | ||
| Operating Wavelength(nm) | 1310/1550 | 850/1310 | ||
| Polishment | UPC | APC | UPC | |
| Insertion Loss(Max.dB) | 0.7 | 0.6 | ||
| Return Loss(Min.dB) | 55 | 60 | 35 | |
| Mating times | 500 Min | |||
| Durability(Max.dB) | 0.2 | |||
| Reaptability(Max.dB) | 0.5 | |||
| Operating Temperature(℃) | -40~+85 | |||
| Storage Temperature(℃) | -40~+85 | |||
