Dual Fiber Wavelength Division Multiplexer 1470nm~1610nm CWDM Mux Demux Module

China Shenzhen Unifiber Technology Co.,Ltd certification
China Shenzhen Unifiber Technology Co.,Ltd certification
I'm Online Chat Now

Dual Fiber Wavelength Division Multiplexer 1470nm~1610nm CWDM Mux Demux Module

Dual Fiber Wavelength Division Multiplexer 1470nm~1610nm CWDM Mux Demux Module
Dual Fiber Wavelength Division Multiplexer 1470nm~1610nm CWDM Mux Demux Module Dual Fiber Wavelength Division Multiplexer 1470nm~1610nm CWDM Mux Demux Module Dual Fiber Wavelength Division Multiplexer 1470nm~1610nm CWDM Mux Demux Module Dual Fiber Wavelength Division Multiplexer 1470nm~1610nm CWDM Mux Demux Module

Large Image :  Dual Fiber Wavelength Division Multiplexer 1470nm~1610nm CWDM Mux Demux Module

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: 8+1ch CWDM
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 5~7 Business days
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Detailed Product Description
Operating Wavelength: 1270nm-1610nm CH: 8+1ch CWDM
Package: 1U Rack Mounted Connector: LC/UPC
Fiber Type: SMF-28e Or Customized Application: PON Network/CATV
High Light:

fiber optic multiplexer

,

cwdm passive multiplexer

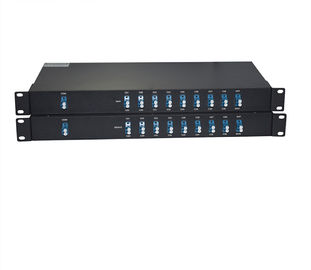

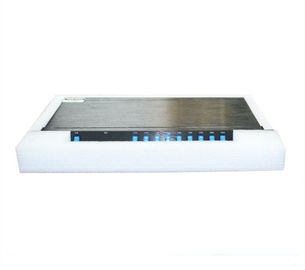

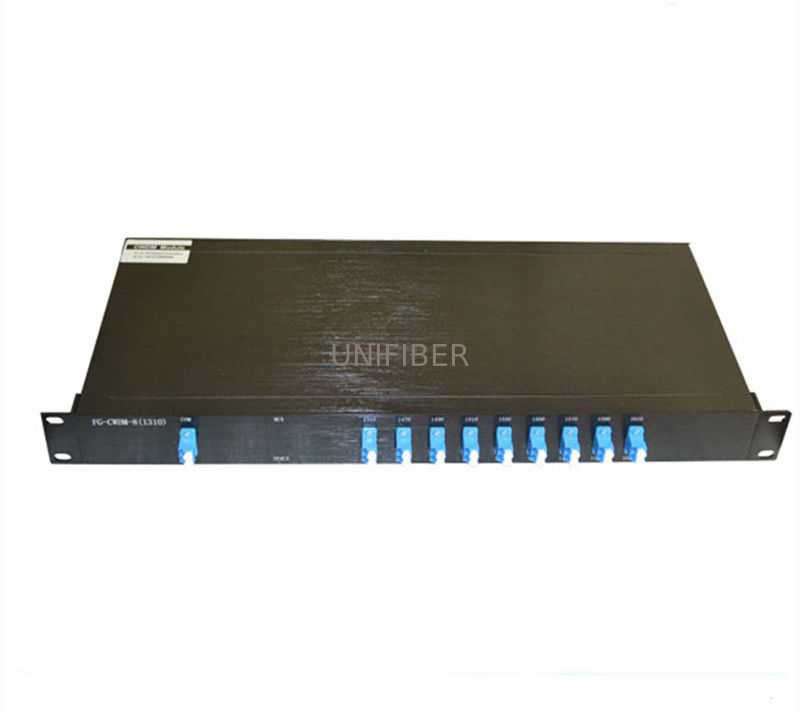

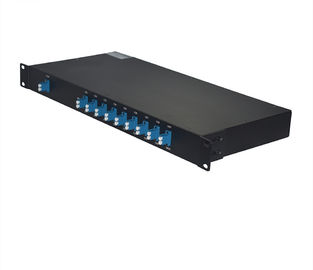

1U Rack Mount Dual Fiber 1470nm~1610nm 8+1CH Channels CWDM Mux Demux Module With 1310nm Port, LC/UPC

CWDM Mux/Demux Module over a single or duplex single mode fiber is quite common to extend your overall bandwidth. It offer high stability and reliability, and has small package size. Its operating wavelength is from 1270nm to 1610nm(1261nm-1611nm) which totally offer 18 channels with 20nm channel spacing.


Features:
Good channel-to-channel uniformity

Low Insertion Loss
High Isolation

Low PDL

High Reliability and Stability

Wide Operating Wavelength: 1270nm-1610nm
Wide Operating Temperature: -20 to +70℃

Compact Design

Applications:

CATV Links

Add/Drop

CWDM System
PON Networks



Parameters:

Parameter 4 Channel 8 Channel 18 Channel
Mux Demux Mux Demux Mux Demux
Channel Wavelength (nm) 1270~1610
Center wavelength Accuracy (nm) ±0.5
Channel Spacing (nm) 20
Channel Passband (@-0.5dB bandwidth (nm) >13
Insertion Loss (dB) ≤1.2 ≤1.5 ≤3.0
Channel Uniformity (dB) ≤0.5 ≤1.0 ≤1.5
Channel Ripple (dB) 0.3
Isolation (dB) Adjacent N/A >30 N/A >30 N/A >30
Non-adjacent N/A >40 N/A >40 N/A >40
Inertion Loss Temperature Sensitivity (dB/°C) <0.005
Wavelength Temperature Shifting (nm/°C) <0.002
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 500
Opterating Temperature (°C) -5~+75
Storage Temperature (°C) -40~85
Package dimension (mm) L100 x W80 x H10 or L140xW100xH15

Above specification are for device without connector.

Ordering Information

Configuration Number of Channels 1st Channel Fiber Type Fiber Length In/Out Connector

M=Mux D=Demux

O=OADM

04=4 Channel



08=8 Channel

16=16 Channel

18=18 Channel
N=N Channel

……

27=1270nm
47=1470nm
49=1490nm

……
61=1610nm
SS=special

1=Bare fiber
2=900um
Loose tube
3=2mm Cable
4=3mm Cable
1=1m
2=2m
S=Specify

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC

……



Contact Details
Shenzhen Unifiber Technology Co.,Ltd

Contact Person: Kerry Sun

Tel: +86-135-9019-2305

Send your inquiry directly to us (0 / 3000)
