Product Details:
Payment & Shipping Terms:
|
| Operation Wavelength: | ITU 100GHz Grid | Fiber Type: | 250um Bare Fiber 0.9/2.0/3.0mm Loose Tube |
|---|---|---|---|
| Fiber Length: | 1M Or Customized | In/Out Connector: | FC SC LC ST |
| Number Of Channels: | 4/8/16CH | 1st Channel: | C21 C22 C23...C59 C60 C61 |
| Configuration: | Mux/Demux | Packages: | ABS Box, LGX Cassette, Rack Mounted |
| High Light: | fiber optic multiplexer,cwdm passive multiplexer |
||

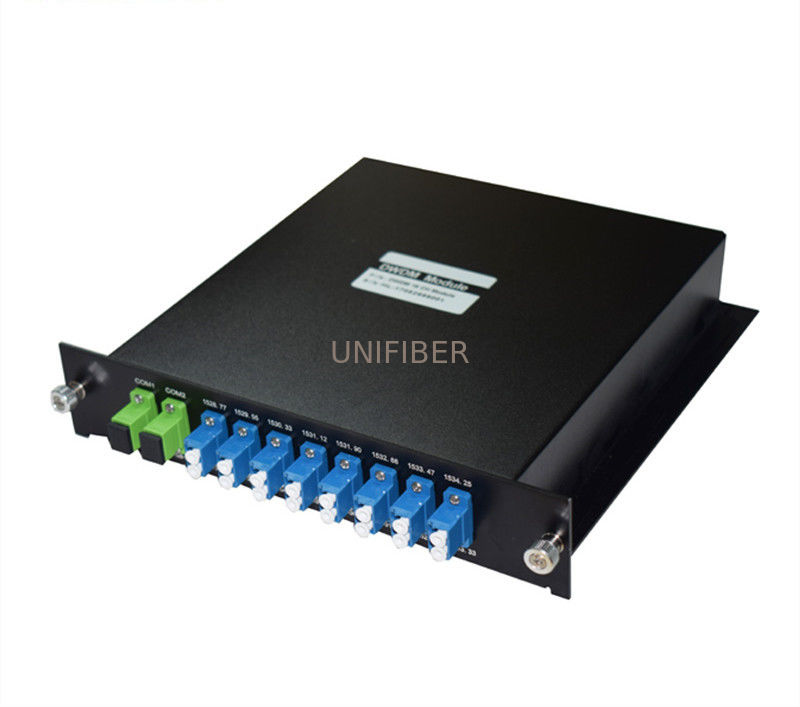

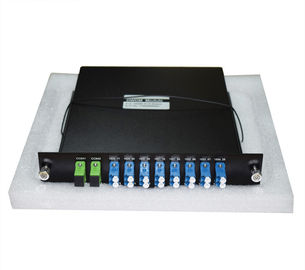

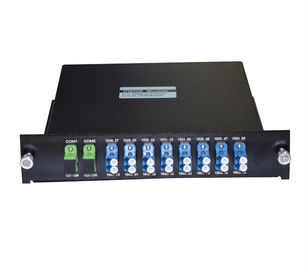

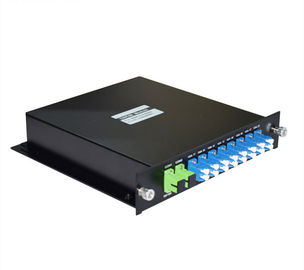

4/8/16 Channel DWDM Mux Demux Module LGX cassette module for passive DWDM network system, single fiber or dual fiber
LGX cassette box Fiber optic 100GHz DWDM MUX / DEMUX WDM Module combines or separates multiple DWDM signals over one fiber. We can supply full complete configuration such as 2CH, 4CH, 8CH, 16CH, up to 88 channels. UNIFIBER provides customized designing to meet different requirements with upgrade port, monitor port.
Features
100Ghz ITU DWDM channels
ABS plastic box, Metal box, LGX box, 1U Chassis
Comply with Telecordia GR-1209-COR-2001
Comply with Telecordia GR-1221-CORE-1999
Comply with ITU-T G3694.2
100% OSA test (Optical spectrum test)
Low end-to-end insertion loss
Wide pass band
High channel isolation
High stability and reliability
Applications
CATV Links
Fiber Optical Amplifier
DWDM Network
PON Networks
Parameters
| Parameter | Unit | Value | |||||
| Central Wavelength | nm | ITU-T Grid | |||||
| Channel Spacing | nm | 0.8 (100GHz) | 1.6 (200GHz) | ||||
| Number of Channels | ---- | 8 | 16 | 8 | |||
| Channel Passband | Min | nm | 0.11 | 0.11 | 0.25 | ||
| Insertion Loss | Ty | dB | 3 | 4 | 3 | ||
| Max | dB | 2.5 | 3.5 | 3.5 | |||
| Ripple | Max | dB | 0.5 | 0.5 | 0.5 | ||
| Channel Uniformity | Max | dB | 1 | 1.5 | 1 | ||
| Isolation | Adjacent Channels | Min | dB | 25 | |||
| Non-adjacent Channels | Min | dB | 40 | ||||
| Directivity | Min | dB | 50 | ||||
| Optical Return Loss | Min | dB | 45 | ||||
| PDL | Max | dB | 0.15 | ||||
| Thermal Stability | Max | dB/°C | 0.007 | ||||
| Thermal Wavelength DriftMax | Max | nm/°C | 0.001 | 0.002 | |||
| Operating Temperature | °C | 0 to 70 | |||||
| Storage Temperature | °C | - 40 to 85 | |||||
| Package Dimension | mm | 140 100 13 | |||||
| Maximum Power Handling | mW |
300 |
|||||
