SC/FC/LC/ST Connectors FTTH Access Network Wall Mount Fiber Termination Box

SC/FC/LC/ST Connectors FTTH Access Network Wall Mount Fiber Termination Box
SC/FC/LC/ST Connectors FTTH Access Network Wall Mount Fiber Termination Box SC/FC/LC/ST Connectors FTTH Access Network Wall Mount Fiber Termination Box SC/FC/LC/ST Connectors FTTH Access Network Wall Mount Fiber Termination Box SC/FC/LC/ST Connectors FTTH Access Network Wall Mount Fiber Termination Box

Large Image :  SC/FC/LC/ST Connectors FTTH Access Network Wall Mount Fiber Termination Box

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER
Certification: ROHS
Model Number: MTB04SC
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 5-8days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
Material: Cold Rolled Steel Max Capacity: 4 Port
Application: FTTH Access Network Performance: Anti-UV, Ultra Violet Resistant And Rainfall Resistant
Certification: RoHS Connector: SC/FC/ST/LC
High Light:

fiber optic junction box

,

optical network terminal box

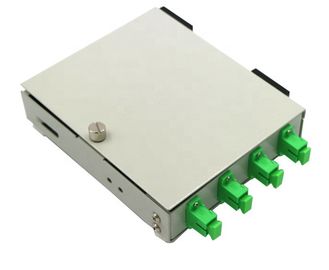

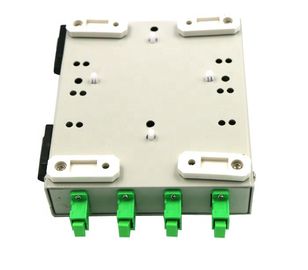

FTTH small size wall mounted metal optical fiber termination box 4 ports SC/FC/LC/ST connectors

FTB Series FTTH customer terminal box is used in the end termination of residential buildings and villas, to fix and splice with
pigtails. We offer the full set of plastic terminal box as distribution box, including 0.9um pigtail and related adapter. 4Fiber
wall mounted terminal box can install with 4pieces 0.9mm pigtails and Standard adapter ,SC,LC,FC,ST all is available.



Applications
Widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data Communications Networks
Local Area Networks
Features
Small size, light weight, pleasing in appearance ;
Wall mounted with mechanical protection function;
Max fiber capacity 4 fibers;
Available for 4 fibers SC adapters (Optional SM, MM or APC/SM);
Hinge and convenient press-pull button lock design;



Specification

Items FTB104 FTB108 FTB116
Dimension(mm) H140×W105×D28 H200×W148×D30 H245×W200×D48
Weight(Kg) 0.38 0.68 1.24
Cable diameter (mm) Φ5~Φ10
Cable entry ports 1hole 2holes 3holes
Max capacity 4cores 8cores 16cores

SC/FC/LC/ST Connectors FTTH Access Network Wall Mount Fiber Termination Box 0SC/FC/LC/ST Connectors FTTH Access Network Wall Mount Fiber Termination Box 1
