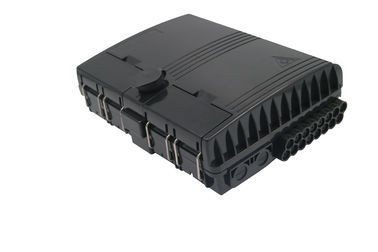

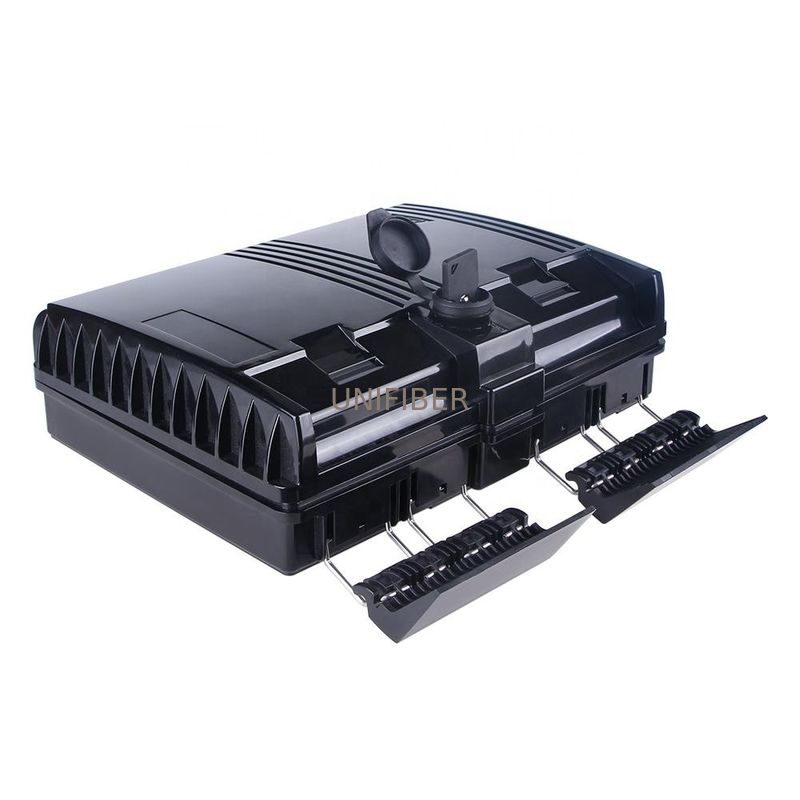

FTTx Network System Waterproof IP66 Fiber Optic Termination Box

FTTH outdoor waterproof fiber optic termination box with 1x8 1x16 mini PLC splitter black color

fiber optic access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box. The optical distribution box is a solution that facilitates the installation of optical termination in branch networks for FTTH environments.

Total enclosed structure.
Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor usesMaterial: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.

Material

Size

Max Capacity

Installation Size

Weight

Color

PC+ABS

AxBxC(mm)

SC

Modular PLC

DxE(mm)

1.5kg

Black

305x237x105

16 Ports

1x16(SC)

206x274
