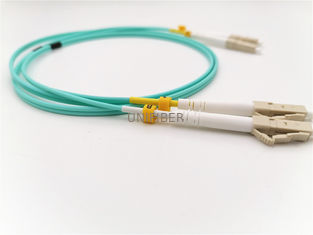

1/3/5/7m 50/125um OM3 OFNR 2.0mm Fiber Optical Patch Cord

China Shenzhen Unifiber Technology Co.,Ltd certification
China Shenzhen Unifiber Technology Co.,Ltd certification
I'm Online Chat Now

1/3/5/7m 50/125um OM3 OFNR 2.0mm Fiber Optical Patch Cord

1/3/5/7m 50/125um OM3 OFNR 2.0mm Fiber Optical Patch Cord
1/3/5/7m 50/125um OM3 OFNR 2.0mm Fiber Optical Patch Cord 1/3/5/7m 50/125um OM3 OFNR 2.0mm Fiber Optical Patch Cord 1/3/5/7m 50/125um OM3 OFNR 2.0mm Fiber Optical Patch Cord

Large Image :  1/3/5/7m 50/125um OM3 OFNR 2.0mm Fiber Optical Patch Cord

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: LC-LC
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: PE bag/carton box
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 100000pcs/day
Detailed Product Description
Connector Type: FC/SC/LC/ST Cable Color: Aqua Or Customized
Fiber Count: Duplex/Simplex Cable Jacket: PVC/LSZH/OFNR
Fiber: G652D Or G657A Wavelength: 850/1300nm
High Light:

2.0mm multimode fiber optic patch cord

,

125um lc lc patch cord

1/3/5/7m LC-LC duplex multimode 50/125um OM3 OFNR 2.0mm Bend Insensitive Fiber Patch Cable for 10G data center cabling

The 50/125μm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.

This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.


FEATURES
Low insertion loss and back reflection loss
Good in repeatability and exchange
Ferrule end surface pre-domed
Excellent mechanical endurance
Green Production, CE, RoHS Standard


APPLICATION
Data centers
Enterprise networks
Telecom room
Server farms
Cloud storage networks



Parameters

Item SingleMode MultiMode
Insertion loss ≤0.2dB ≤0.3dB
Return loss PC≥50dB, APC≥55dB, UPC≥60dB
Insert-pull test 1000 times
Repeatability ≤0.1
Tensile strength ≥10kg
Operating temperature -40℃~ +85℃
Ceramic ferrule spec 125.5um concentricity deviations:≤1μm 127um concentricity deviations:≤3μm
Suitable fiber 9/125μm 50/125μm, 62.5/125μm



1/3/5/7m 50/125um OM3 OFNR 2.0mm Fiber Optical Patch Cord 01/3/5/7m 50/125um OM3 OFNR 2.0mm Fiber Optical Patch Cord 1
