Product Details:
Payment & Shipping Terms:
|
| Pigtail Color: | 12 Colors | Fiber Type: | G652D G657A |
|---|---|---|---|
| Length: | 1m,1.5m,3m Or Customized | Fiber Count: | 4/6/8/12 Fibers |
| Connector: | LC SC FC ST | Polish Type: | UPC Or APC |
| High Light: | 125um single mode pigtail,G657A pigtail optical fiber |
||

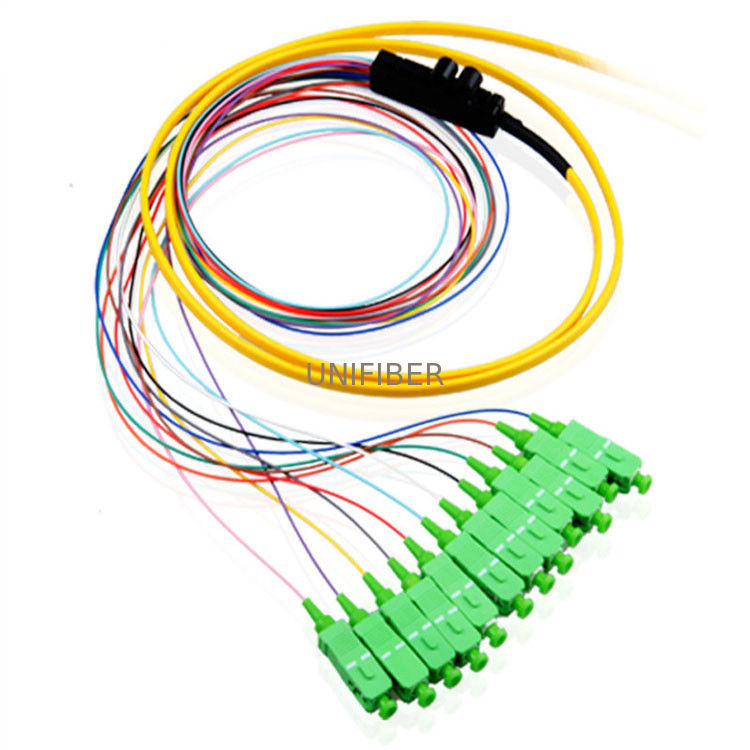

Fiber optic pigtail SC/APC 12-colour pack 9/125um OS2 Single Mode 0.9mm PVC/OFNR/LSZH G657A 1m
UNIFIBER provide various of fiber optic pigtails for your splicing application, includes 1fiber, 4/6/8/12 fiber pack with different connectors of SC, LC,FC, ST , with UPC or APC polish type. These can be come with singlemode, multimode or OM3, with 900um tight buffer PVC or LSZH jacket.
FEATURES
The connector could be SC,FC, LC, ST, MU, and E2000etc
Fiber could be G652D,G655, G657, OM1, OM2, OM3, OM4 etc.
Any length is available: 1m,1.5m or other length you required.
Different fiber diameter for option: 0.9mm, 2mm or 3mm
Telecom level and insertion loss below 0.3 db.
APPLICATION
CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications
Parameters
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
