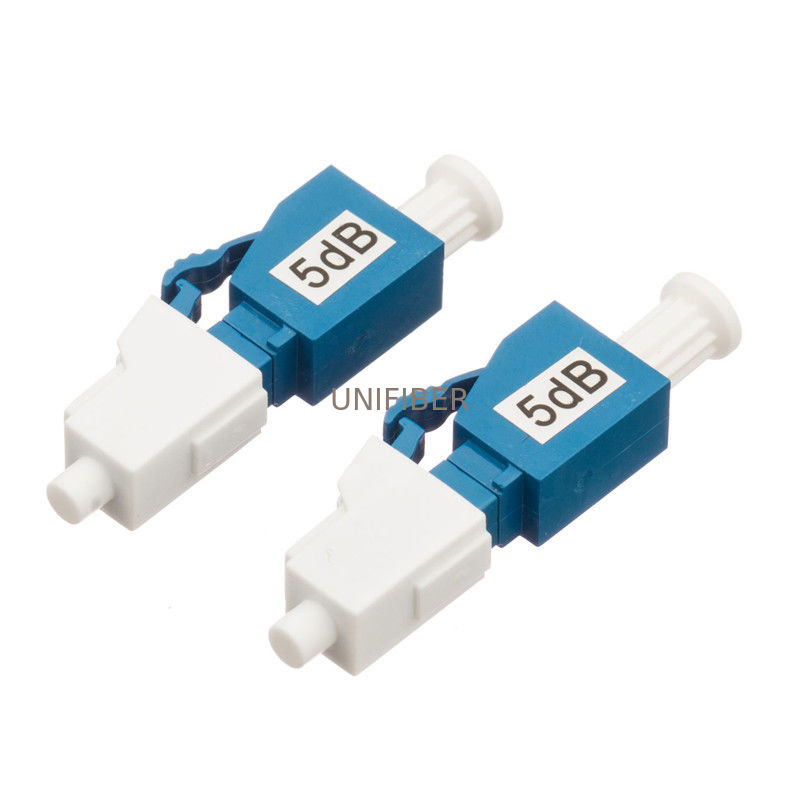

LC/UPC Male Female 1310nm Single Mode Fiber Attenuator

Large Image : LC/UPC Male Female 1310nm Single Mode Fiber Attenuator

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	UNFLCU

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Attenuation Range:	1~30dB	Fiber Connector:	LC/SC/FC/ST
Polish Type:	APC Or UPC	Operation Wavelength:	1240 ~ 1620nm (Dual 1310/1550nm)
Return Loss:	UPC >55dB APC >65dB	Type:	Male/Female
High Light:	1310nm fiber optic variable attenuator , 200mw optical fiber attenuator

LC/UPC 3/5/10/15dB Single mode 1310/1550nm fixed Build out Male/Female Attenuator

The most commonly used type is female to male plug type fiber optic attenuator, it has the optical fiber connector at one side and the other side is a female type fiber optic adapter, fiber optic attenuator name is based on the connector type and the attenuation level. LC Build Out Fiber Attenuators include LC/UPC fiber attenuators and LC/APC Female to Male Fiber Attenuators.with attenuation range is from 1dB to 20dB for options.

Features

High-power light source durability

Wavelength independence

Attenuation levels ranging from 1dB to 25dB
1310nm, 1550nm and 1310/1550nm dual wave lengths

Application

Data Networks

Video & CATV &FTTH Networks
Telecommunication Networks
Fiber Optical Communication System

Specification
Attenuation Range	0-25dB
Attenuation Accuracy	±0.5dB(1dB-10dB)
Attenuation Accuracy	±1.0dB(11dB-25dB)
Available Wavelengths	1310nm,1550nm,1310&1550nm
Wavelength Dependence	<0.3dB Change in insertion loss for 1310-1550nm
Retuen Loss	≥55dB(UPC)
Retuen Loss	≥65dB(APC)
Polarization Dependent Loss	≤0.2dB
Temperature Range	-40-80°C(≤0.2dB in insertion loss)
Humidity Range	±0.2dB Change in 10% to 90% relative Humidity Range
Vibration	≤0.1dB Change between 10Hz to 55Hz
Drop	±0.2dB after 8 drops from 1.8meters onto a hard surface
Maximum Optical Input Power	200mW
