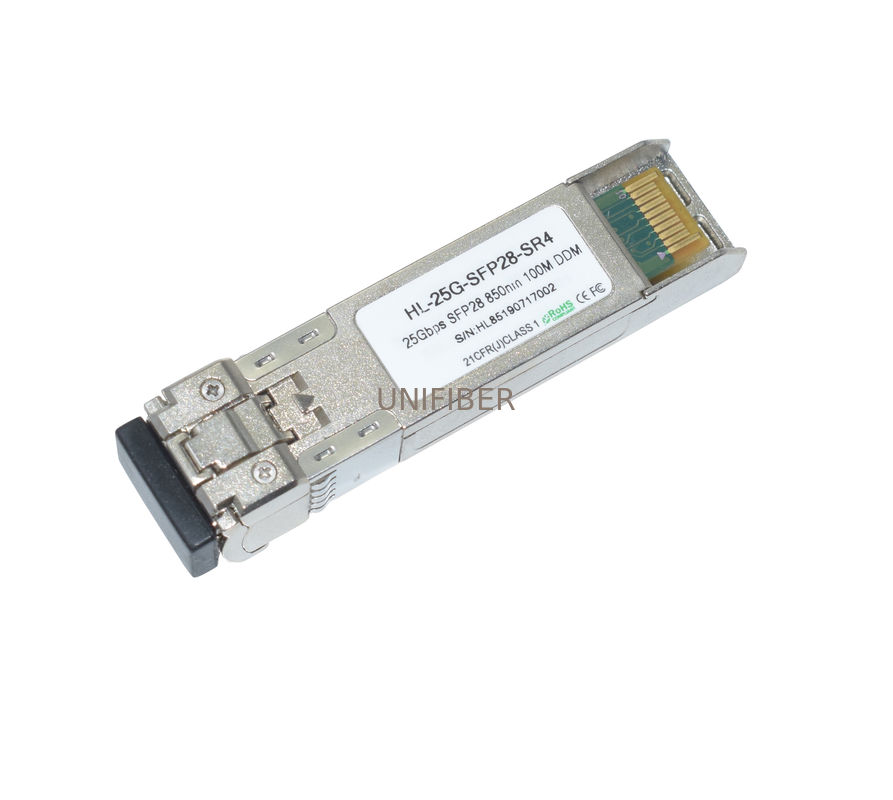

850nm 25Gpbs SFP28 SR DDM Fiber Optic Ethernet Transceiver

850nm 25Gpbs SFP28 SR DDM Fiber Optic Ethernet Transceiver
850nm 25Gpbs SFP28 SR DDM Fiber Optic Ethernet Transceiver 850nm 25Gpbs SFP28 SR DDM Fiber Optic Ethernet Transceiver 850nm 25Gpbs SFP28 SR DDM Fiber Optic Ethernet Transceiver

Large Image :  850nm 25Gpbs SFP28 SR DDM Fiber Optic Ethernet Transceiver

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: CE RoHS FCC
Model Number: 25G-SFP28-SR
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Individual package
Delivery Time: 5~7 Business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Wavelength: 850nm Data Rate: 25G
Transmission Distance: 100M Interface: Dual LC
Certification: CE RoHS FCC Brand: Can Be Customized
High Light:

Multimode Sfp Transceiver

,

25Gpbs Transceiver Fiber Optic

This 25G SFP28 SR 100m industrial optical transceiver is designed for 25GBASE-SR Ethernet and CPRI/eCPRI links reach up to 70m (OM3) or 100m (OM4) over Multi-Mode Fiber (MMF).UNIFIBER 25G SFP28 transceiver series are based on IEEE 802.3by and MSA SFF-8402, including SR, LR, BiDi, CWDM and DWDM series.



Features

Hot-pluggable SFP28 form factor
Full-duplex transceiver module
850nm VCSEL laser and PIN photo-detectorc
Internal CDR on both transmitter and receiver channels
Compliant with SFP28 MSA and IEEE 802.3by 25GBASE-SR
Compliant with CPRI/eCPRI specifications
Data rate up to 25Gbps
Reach up to 70m (OM3) or 100m (OM4) over MMF
Low power consumption < 1W
Dual LC receptacles
Operating case temperature range -40°C to 85°C
Single 3.3V power supply
RoHS compliant (lead free)



Applications

25.78 Gb/s single lane 100GE SR4
OUT4
32GFC
CPRI Option 10



Items Data Rate
(bps)
Wavelength
(nm)
Fiber
Type
Distance Optical
Comp.
Tx Power
(dBm)
Rx Sens.
(dBm))
Temp.
(℃)
SFP28 SR 25.78G 850   100 m   -10 -7.5~2.5 0-70
SFP28 IR 25.78G 1310   2 km   -10.4 -8.4~3.0 0-70
SFP28 LR 25.78G 1310   10 km       0-70
  25.78G CWDM
1270-1330
  10 km       0-70
SFP28 LR 25.78G 1310   20 km       0-70
SFP28 ER 25.78G CWDM
1295-1310
  30/40 km       0-70
  25.78G 1310   300 m       -40-85
  25.78G 1310   2 km       -40-85
  25.78G 1310   10 km       -40-85
  25.78G 1310   10 km       -40-85
  25.78G CWDM
1270-1330
  10 km       -40-85
  25.78G 1310   20 km       -40-85
  25.78G 1295-1310   30/40 km       -40-85
  25.78G C-Band
100GHz DWDM
  20 km       -40-85
  25.78G C-Band
100GHz DWDM
  10 km       -40-85




Items Data Rate
(bps)
Wavelength
(nm)
Fiber
Type
Distance Temp.
()
SFP28 BIDI up to 25.78G 1270/1330 SMF 10 km -40-85
SFP28 BIDI up to 25.78G 1330/1270 SMF 10 km -40-85
SFP28 BIDI up to 25.78G 1270/1330 SMF 20 km -40-85
SFP28 BIDI up to 25.78G 1330/1270 SMF 20 km -40-85
SFP28 BIDI up to 25.78G 1270/1310 SMF 30 km -40-85
SFP28 BIDI up to 25.78G 1310/1270 SMF 30 km -40-85
SFP28 BIDI up to 25.78G 1270/1310 SMF 40 km -40-85
SFP28 BIDI up to 25.78G 1310/1270 SMF 40 km -40-85
