25Gb/s SFP28 CWDM 1310nm 10km LR Fiber Channel Transceiver

25Gb/s SFP28 CWDM 1310nm 10km LR Fiber Channel Transceiver
25Gb/s SFP28 CWDM 1310nm 10km LR Fiber Channel Transceiver 25Gb/s SFP28 CWDM 1310nm 10km LR Fiber Channel Transceiver 25Gb/s SFP28 CWDM 1310nm 10km LR Fiber Channel Transceiver 25Gb/s SFP28 CWDM 1310nm 10km LR Fiber Channel Transceiver

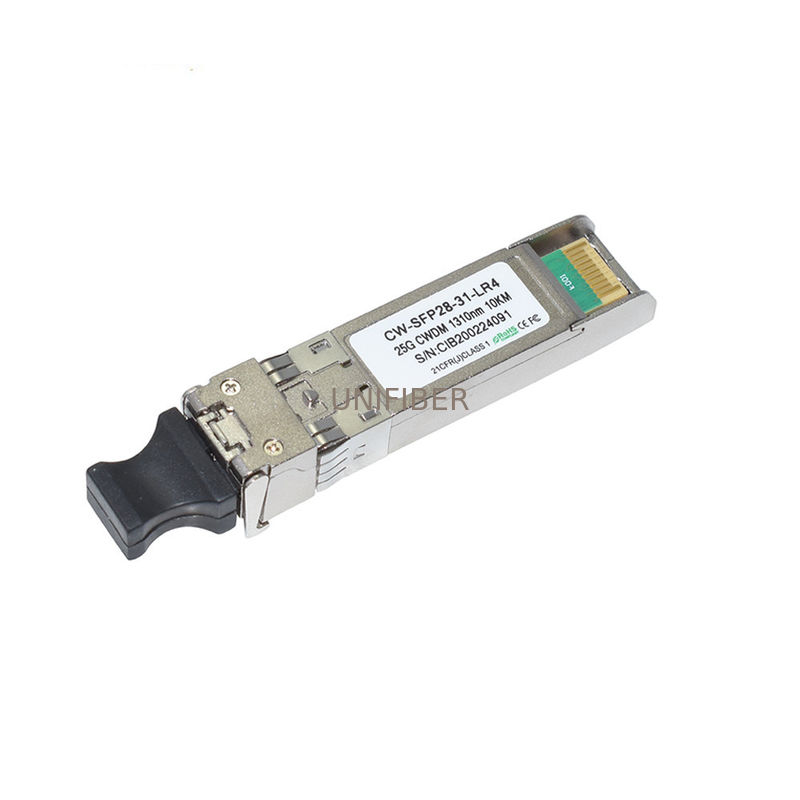

Large Image :  25Gb/s SFP28 CWDM 1310nm 10km LR Fiber Channel Transceiver

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: CE RoHS FCC
Model Number: 25G-SFP28-LR
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Individual package
Delivery Time: 5~7 Business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Wavelength: 1310nm Data Rate: 25G
Transmission Distance: 10km Interface: Dual LC
Certification: CE RoHS FCC Brand: Can Be Customized
High Light:

SFP28 Fiber Optic Module

,

1310nm Sfp Optical Transceiver

25Gb/s SFP28 fiber optic module CWDM 1310nm 10km LR Fiber Channel Transceiver

UNIFIBER 25G SFP28 transceiver series are based on IEEE 802.3by and MSA SFF-8402, including SR, LR, BiDi, CWDM and DWDM series.



Features
Up to 25.78Gb/s data links
CWDM DFB laser and PIN receiver
Up to 10km on 9/125um SMF
Hot-pluggable SFP footprint
Digital diagnostic capabilities
Class 1 laser safety certified
Cost effective SFP28 solution, enables higher port densities and greater bandwidth
RoHS compliant and lead-free
Single +3.3V power supply
2-wire interface for management specifications compliant with SFF-8472 digital diagnostic monitoring interface for optical transceivers
All-metal housing for superior EMI performance
Case operating temperature
Commercial: 0 ~ +70oC
Extended: -10 ~ +80oC
Industrial: -40 ~ +85oC



Applications
High-speed storage area networks
Computer cluster cross-connect
Custom high-speed data pipes
Inter Rack Connection



Items Data Rate
(bps)
Wavelength
(nm)
Fiber
Type
Distance Optical
Comp.
Tx Power
(dBm)
Rx Sens.
(dBm))
Temp.
(℃)
SFP28 SR 25.78G 850   100 m   -10 -7.5~2.5 0-70
SFP28 IR 25.78G 1310   2 km   -10.4 -8.4~3.0 0-70
SFP28 LR 25.78G 1310   10 km       0-70
  25.78G CWDM
1270-1330
  10 km       0-70
SFP28 LR 25.78G 1310   20 km       0-70
SFP28 ER 25.78G CWDM
1295-1310
  30/40 km       0-70
  25.78G 1310   300 m       -40-85
  25.78G 1310   2 km       -40-85
  25.78G 1310   10 km       -40-85
  25.78G 1310   10 km       -40-85
  25.78G CWDM
1270-1330
  10 km       -40-85
  25.78G 1310   20 km       -40-85
  25.78G 1295-1310   30/40 km       -40-85
  25.78G C-Band
100GHz DWDM
  20 km       -40-85
  25.78G C-Band
100GHz DWDM
  10 km       -40-85




Items Data Rate
(bps)
Wavelength
(nm)
Fiber
Type
Distance Temp.
()
SFP28 BIDI up to 25.78G 1270/1330 SMF 10 km -40-85
SFP28 BIDI up to 25.78G 1330/1270 SMF 10 km -40-85
SFP28 BIDI up to 25.78G 1270/1330 SMF 20 km -40-85
SFP28 BIDI up to 25.78G 1330/1270 SMF 20 km -40-85
SFP28 BIDI up to 25.78G 1270/1310 SMF 30 km -40-85
SFP28 BIDI up to 25.78G 1310/1270 SMF 30 km -40-85
SFP28 BIDI up to 25.78G 1270/1310 SMF 40 km -40-85
SFP28 BIDI up to 25.78G 1310/1270 SMF 40 km -40-85
