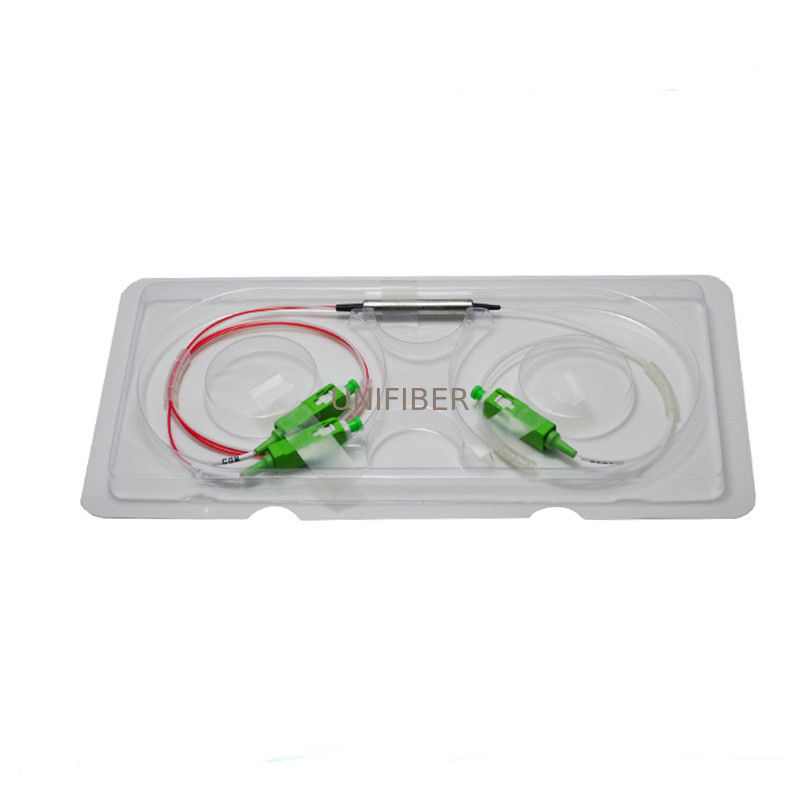

980/1550nm Steel Tube 3 Ports SC/APC FWDM Device

980/1550nm Steel Tube 3 Ports SC/APC FWDM Device
980/1550nm Steel Tube 3 Ports SC/APC FWDM Device 980/1550nm Steel Tube 3 Ports SC/APC FWDM Device 980/1550nm Steel Tube 3 Ports SC/APC FWDM Device

Large Image :  980/1550nm Steel Tube 3 Ports SC/APC FWDM Device

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER
Certification: ROHS
Model Number: FWDM
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Blister Case
Delivery Time: 3-5days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
Wavelength: 980/1550nm,1480/1550nm Package: Steel Tube,ASB Box
Pigtail Type: 250um Bare Fiber,900um Loose Tube,2.0mm,3.0mm Connector Type: FC,SC,LC,ST Or Customized
High Light:

3 Ports Micro Optics FWDM

,

1550nm FWDM Micro Optics Filter

High Isolation 3 Ports FWDM 980/1550nm,1480/1550nm, Steel tube SC/APC

Micro-Optics WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path.



Features:

Low Insertion Loss
High channel Isolation
Wide pass band
High reliability and stability
Epoxy free on optical path



Application:

Fiber optical Amplifier
Access Network

Line monitoring
Telecom munication
Cellular Application



Parameter

Parameter FWDM 4/35 FWDM 5/34 FWDM 3/45 FWDM 34/5
Pass Band Wavelength Range (nm) 1480~1500 1540~1560 1260~1360 1260~1360 & 1480~1500
Reflection Band 1 Wavelength Range(nm) 1260~1360 1260~1360 1480~1500 1540~1560
Reflection Band 2 Wavelength Range (nm) 1540~1560 1480~1500 1540~1560
Insertion Loss(dB) Reflect Channel ≤0.6
Pass Channel ≤0.8
Insertion Loss Variation(dB) <0.3
Isolation(dB) Pass Channel >15
Reflect Channel >30
Inertion Loss Temperature Sensitivity(dB/℃) <0.005
Polarization Dependent Loss(dB) <0.1
Polarization Mode Dispersion(ps) <0.1
Directivity(dB) >50
Return Loss(dB) >50
Maximum Power Handling(mW) 500
Opterating Temperature(℃) -20~+70
Storage Temperature(℃) -40~+85
Package dimension(mm) Φ5.5x34 (L38 for 900um Loose tube)

1,Above specifications are for devices without connector.

2,Specifications may change without notice.
