Product Details:
Payment & Shipping Terms:
|
| Operating Wavelength: | ITU 100GHz Grid | CH: | 4 |
|---|---|---|---|
| Package: | ABS Box | Connector: | LC/UPC |
| High Light: | DWDM Plug In Module,Mux Demux Module |
||

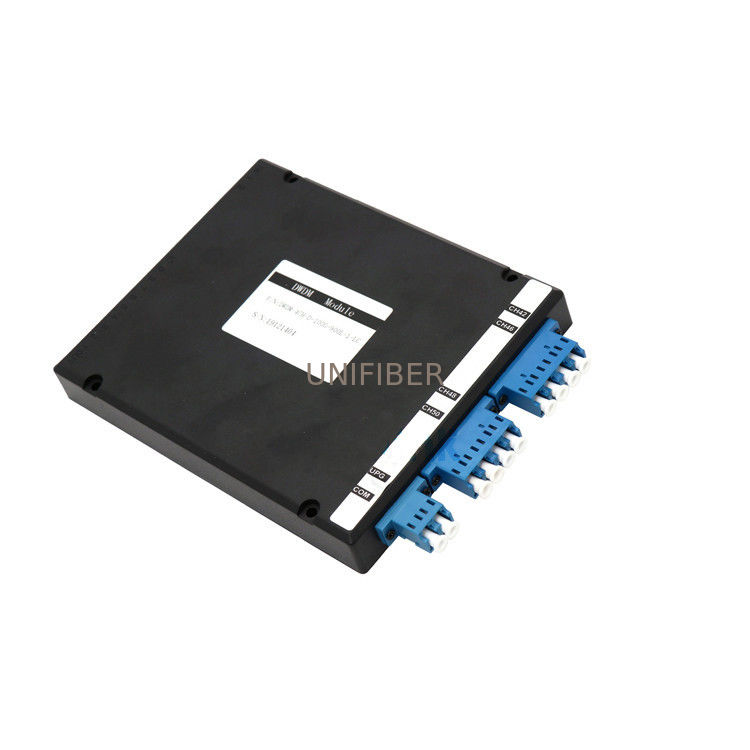

100G 4ch DWDM Plug-in module,Mux/Demux,LC/UPC adapter, with one upgrade port
LGX cassette box Fiber optic 100GHz DWDM MUX / DEMUX WDM Module combines or separates multiple DWDM signals over one fiber. We can supply full complete configuration such as 2CH, 4CH, 8CH, 16CH, up to 88 channels. UNIFIBER provides customized designing to meet different requirements with upgrade port, monitor port.
Features:
High Isolation
Compact Design
Low insertion loss, low PDL
High Reliability and Stability
Good channel-to-channel uniformity
Applications:
Channel Add/Drop
DWDM Network
Wavelength Routing
CATV Fiber Optical System
Parameters:
| Parameter | Value | ||||||||
| Channels Number | 2 | 4 | 8 | 16 | 32 | 40 | |||
| Central Wavelength(nm) | ITU-T Grid | ||||||||
| Channel Spacing(GHZ) | 100/200 | ||||||||
| Bandwidth(nm) | ITU-T ±0.11/ ITU-T ±0.25 | ||||||||
| I.L(dB) | Typ. | 1.2 | 1.6 | 2.2 | 3.2 | 3.8 | 5.2 | ||
| MAX. | 1.4 | 1.8 | 2.8 | 5.0 | 5.6 | 6.0 | |||
| Ripple(dB) | ≤0.5 | ||||||||
| PDL(dB) | ≤0.10 | ≤0.15 | ≤0.20 | ≤0.25 | ≤0.30 | ≤0.30 | |||
| Isolation(dB) | Adjacent Channel | ≥25 | |||||||
| Non-adjacent Channel | ≥45 | ||||||||
| Directivity(dB) | ≥50 | ||||||||
| R.L(dB) | ≥45 | ||||||||
| Operating Temperature(℃) | -5~+75 | ||||||||
| Storage Temperature(℃) | -40~85 | ||||||||
| Note: 1.All the data above does not include connectors 2.For more details, please contact our sales |
|||||||||
