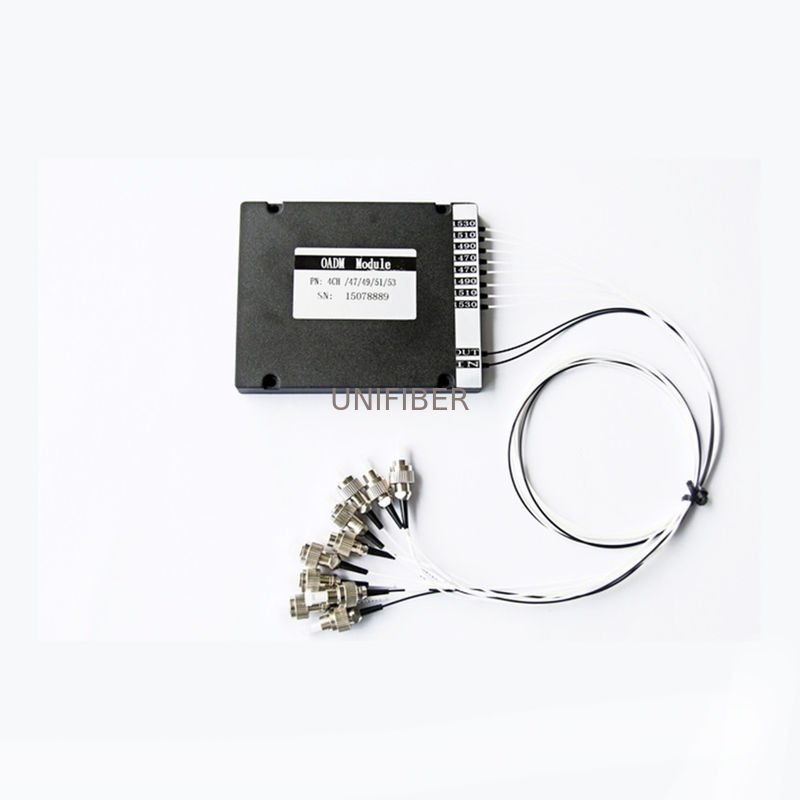

OADM CWDM 1470-1610 4ch Optical Mux Demux Multiplexer

OADM CWDM 1470-1610 4ch Optical Mux Demux Multiplexer
OADM CWDM 1470-1610 4ch Optical Mux Demux Multiplexer OADM CWDM 1470-1610 4ch Optical Mux Demux Multiplexer OADM CWDM 1470-1610 4ch Optical Mux Demux Multiplexer

Large Image :  OADM CWDM 1470-1610 4ch Optical Mux Demux Multiplexer

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: CWDM OADM
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 5~7 Business days
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Detailed Product Description
Operating Wavelength: 1270nm-1610nm Logo: Can Be Customized
Package: ABS Box Connector: LC/UPC
Fiber Type: G657A1 0.9mm Pigtails Application: PON Network/CATV
High Light:

Add Drop Multiplexer

,

OADM Module

Optical mux demux CWDM 1/2/4ch 1470-1610 Add/Drop Multiplexer OADM Module

CWDM/OADM modules are Course Wave Division Multiplexing (CWDM) Optical Add/Drop Multiplexers (OADM). The CWDM/AD modules add (multiplex) and drop (demultiplex) chosed channels, or wavelengths, on both directions (east and west) or one direction (east or west) of a CWDM common fiber link. The technology enables intelligent planning and flexible provisioning of optical services while simplifying the deployment and maintenance of optical networks. Access points can be added to linear, bus, and ring networks, where the east and west ring design provides redundant protected architecture.



Features
Low insertion loss
Wide band
high channel isolation
High stability and reliability
Epoxy-free optical path


Applications
CWDM channel Add/Drop CWDM Add/Drop
Metro/Access networks
CATV system


Specifications

Parameter Add Drop
Operation Wavelength (nm) 1471, 1491 or 1470, 1490 etc.
Center wavelength accuracy (nm) ± 0.5
Channel Spacing (nm) 20
Passband (@-0.5dB bandwidth)(nm) >13

Insertion Loss (dB)



Add/Drop Ch. < 0.9
Express Ch. < 1.2
Add/Drop Pass band Flatness (dB) < 0.3
Add/Drop channel Isolation(dB) Adjacent Channel N/A>30
Non-adjacent Channel N/A>40
Express channel Isolation (dB ) express >25
Insertion Loss Temperature (dB/°C ) <0.003
Wavelength Temperature Shifting (nm/ °C ) <0.002
PDL (dB) <0.10
PMD (ps) <0.1
Directivity (dB) >50
Return Loss (dB) >45
Rated power (mW) 500
Operation Temperature (°C) 0 ~ +70
Storage Temperature (°C) -40 ~ +85
Dimension (mm) L100×W80×H10

Ordering Information

OADM
Channel Spacing C=CWDM Grid
Channels Number 02=2 Channel
1st channel (1st ) 471=1471nm
491=1491nm
Fiber diameter 1=bare fiber
2=900um loose tube
Fiber Length 1=1 Meter
2=2 Meter
Connector 0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST
6=LC

OADM CWDM 1470-1610 4ch Optical Mux Demux Multiplexer 0OADM CWDM 1470-1610 4ch Optical Mux Demux Multiplexer 1
