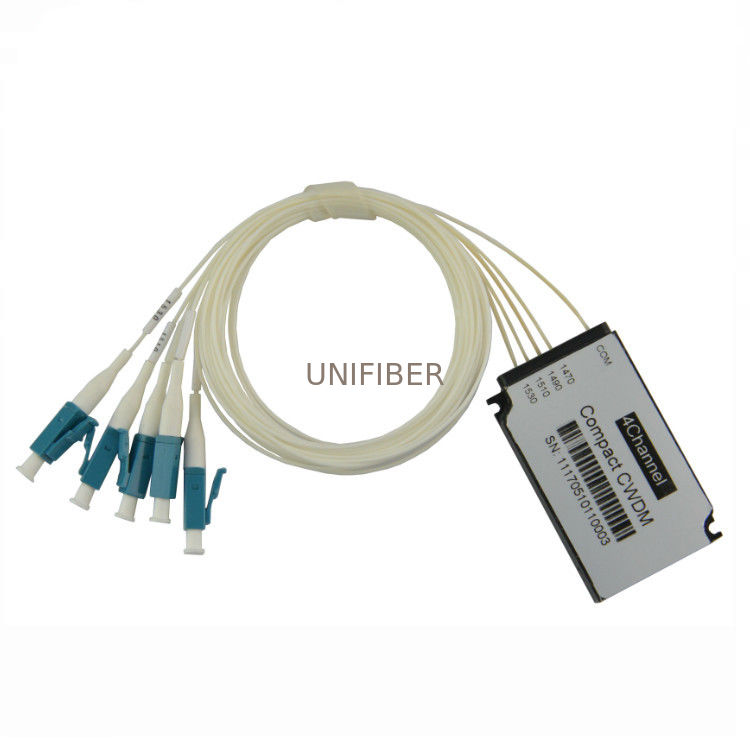

0.5m 4CH CWDM Mux Demux Wavelength Division Multiplexer

0.5m 4CH CWDM Mux Demux Wavelength Division Multiplexer
0.5m 4CH CWDM Mux Demux Wavelength Division Multiplexer 0.5m 4CH CWDM Mux Demux Wavelength Division Multiplexer 0.5m 4CH CWDM Mux Demux Wavelength Division Multiplexer

Large Image :  0.5m 4CH CWDM Mux Demux Wavelength Division Multiplexer

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: CCWDM
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 5~7 Business days
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Detailed Product Description
Operating Wavelength: 1270nm-1610nm Logo: Can Be Customized
Package: ABS Box Connector: LC/UPC
Fiber Type: G657A1 0.9mm Pigtails Application: PON Network/CATV
High Light:

CWDM Mux Demux Module

,

4CH Mux Demux Multiplexer

Small size 4CH Compact CWDM Mux Demux module LC/UPC 0.5m

Mini Compact CWDM MUX DEMUX Module is compact coarse wavelength division multiplexer and fall in with TELCORDIA GR-1221-CORE, It provides channels up to 16 even 18 with 20nm channel spacing from 1260~1610.Compare to common standard CWDM MUX DEMUX Modules, mini compact CWDM MUX DEMXU Modules based on optic bench platform(that consists of multiple filter collimator and substrate,wedges) to greatlyy reduce manfuacturing cost and improve optical performance.For compact CWDM MUX DEMUX applications. it previously shows that the substrate intergration and free space beams provide more compact module dimensions, but the intergarations of 3-port thin-film filters soltuions cannt.


Features
Compact Mini Size

High Isolation

Epoxy Free in Optical Path
Low Optic Loss and Polarization Sensitivity
Telcordia GR-1221 Qualified


Application
CWDM network in PON
CWDM Upgrade in Metro Network
CATV
FTTH/FTTP



Parameters:

Type 4Channel Mux/Demux 4Channel+1 Mux/Demux
Operating Wavelength range(nm) 1270~1610 or 1271~1611
Center Wavelength Accuracy(nm) ±0.5
Channel Spacing(nm) 20
Channel Pass band (nm) Channels ±7.5/±6.5
Express Port N/A 1310±50,or others specified
Insertion Loss (Max.dB) 1.0
Channel Ripper( Max.dB) 0.3
Fiber Type Corning SMF-28e
Isolation (Min.dB) Adjacent 30
Non-adjacent 40
Express Port 15
Insertion Loss Temperature Sensitivity ( Max. dB/℃) 0.005
PDL(Max.dB) 0.15
Polarization Mode Dispersion( Max.dB) 0.1
Directivity (Max.dB) 50
Return Loss(Min.dB) 45
Maximum Power Handing(mW) 500
Operating Temperature(℃) -5~+70
Storage Tmepreature(℃) -40~+85
Package 44(L)X28(W)X6(H), 44(L)X28(W)X7(H) or 53.8(L)X28(W)X8(H)
