Product Details:
Payment & Shipping Terms:
|
| Fiber Counts: | 2~48core | Fiber Mode: | Singlemode/multimode/OM2/OM3/OM4 |
|---|---|---|---|
| Cable Structure: | 0.9mm Tight Buffer Distribution Cable | Application: | Indoor Multi Purpose Distribution |
| Materiail: | PVC/LSZH/PE | Color: | Yellow/Orange/Aqua |
| High Light: | LSZH Jacket Bulk Fiber Cable,0.9mm Distribution Fiber Optic Cable |
||

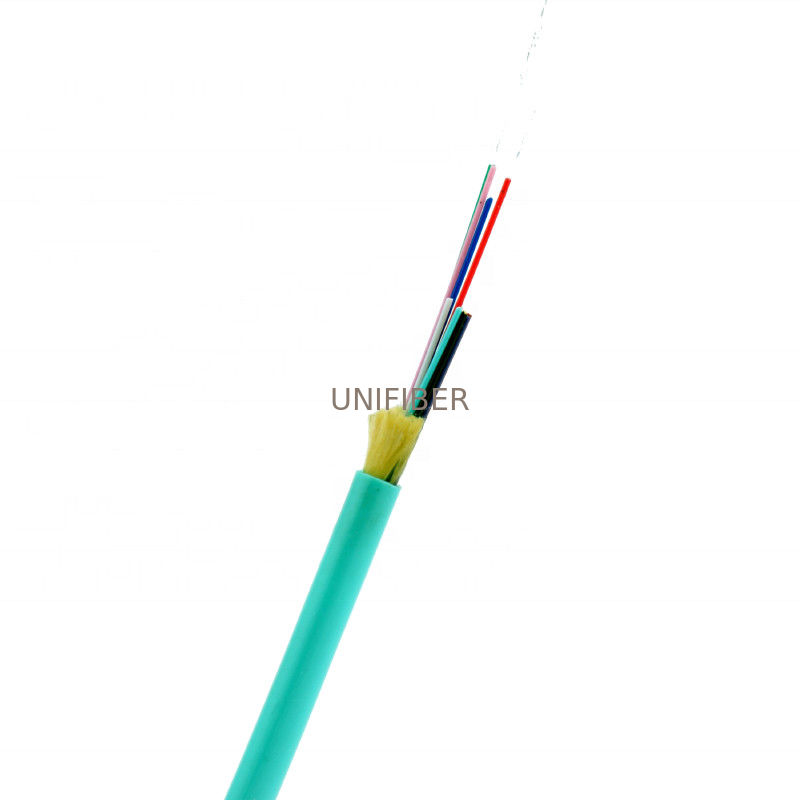

12/24 core OM3/OM4 indoor 0.9mm tight buffer distribution fiber cable PVC/LSZH jacket aqua color

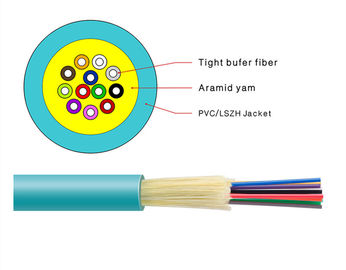

Multi-Purpose Distribution cable use several Φ900µm flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.
Features:
Tight buffer fiber easy of stripping.
Tight buffer fiber have excellent flame-retardant performance.
The outer jacket material have many advantages such as anti-corrosion anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
Aramid yarn as strength member make cable have excellent tensile strength
Application:
Indoor any purpose cable distribution.
Backbone distribution cable in a building.
Multi optical fiber jumper.
| Technical parameters | |||||||||||
| cable count | out sheath diameter | Tight buffer diameter | Weight | Minimum allowable Tensile strength(N) |
Minimum allowable Crush load(N/100mm) |
Min bending radius(MM) |
Suitable temperature |
||||
| (core) | (MM) | (MM) | (KG) | short term |
long term |
short term |
long term |
short term |
long term |
(℃) | |
| 02 | 3.0 | 0.9 | 15.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 04 | 4.0 | 0.9 | 22.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 06 | 4.0 | 0.9 | 23.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 08 | 5.0 | 0.9 | 27.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 10 | 5.5 | 0.9 | 30.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 12 | 6.0 | 0.9 | 35.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 24 | 7.0 | 0.9 | 40.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 48 | 8.5 | 0.9 | 48.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
