Product Details:
Payment & Shipping Terms:
|
| Connector: | LC SC FC ST | Fiber Type: | G652D G657A1 G657A2 G657B3 |
|---|---|---|---|
| Fiber Count: | 1/4/6/8/12 Fibers | Pigtail Color: | 12 Colors |
| Jacket: | PVC/LSZH | Diameter: | 0.9mm 1.2mm 1.6mm 2.0mm 3.0mm |
| High Light: | 3ft ST Fiber Pigtail,900um Buffer Fiber Pigtail |
||

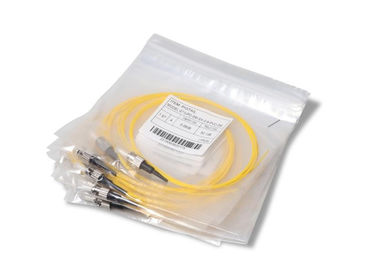

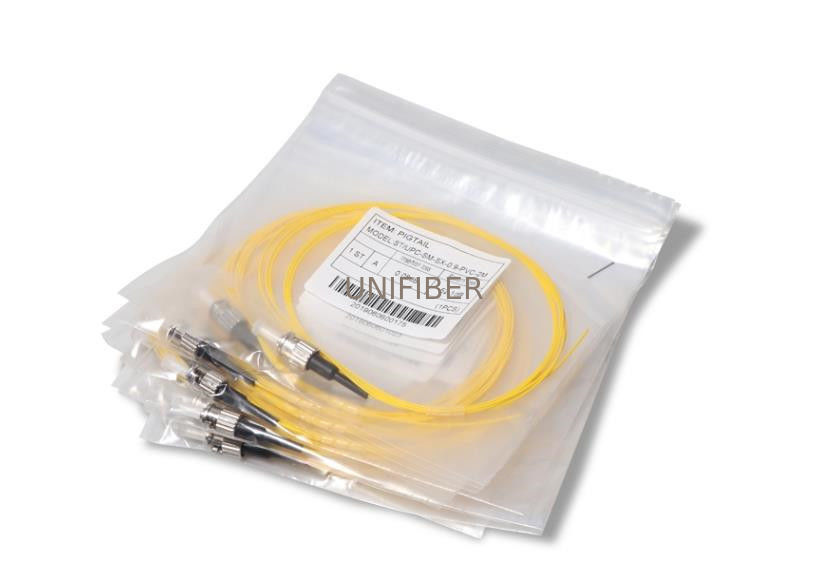

Optical fiber pigtail ST, 900um buffer, SM, SX, G657A1, 1m(3ft)
Fiber optic pigtail is made up of a single strand of optical fiber that is protected by a layer of 0.9mm buffer. It has one end pre-terminated with a fiber optic connector, while the other end will connect to the optical fiber from the optical cable. It facilitates the connection between the optical cable to other optical equipment.UNIFIBER build virious of fiber optic pigtails with 1F 4F 6F 8F 12F with standard connectors LC, FC, SC, ST, MU, MTRJ, MPO, D4, DIN, SMA, E2000, ect, UPC or APC polished.
Features
Low Insertion Loss & PDL
Factory-terminated and Tested
Ease of installation
Low environmental sensitivity
High return loss (low amounts of reflection at the interface)
APPLICATION
Access Network
Telecom/CATV Systems
Active device termination
Local Area Networks (LANs)
Test equipment
Data processing networks
Wide Area networks (WANs)
FTTX
Parameters
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
