Product Details:
Payment & Shipping Terms:
|
| Material: | ABS | Ports: | 1/2/4 |
|---|---|---|---|
| Adapter: | SC Simplex Or LC Duplex | Cable Length: | 10/20/30/40/50/60/70...or Customized |
| Color: | White | Application: | Indoor Wall Mounted |
| High Light: | Drop Cable FTTH Terminal Box,G657A1 Fiber Termination Cabinet |
||

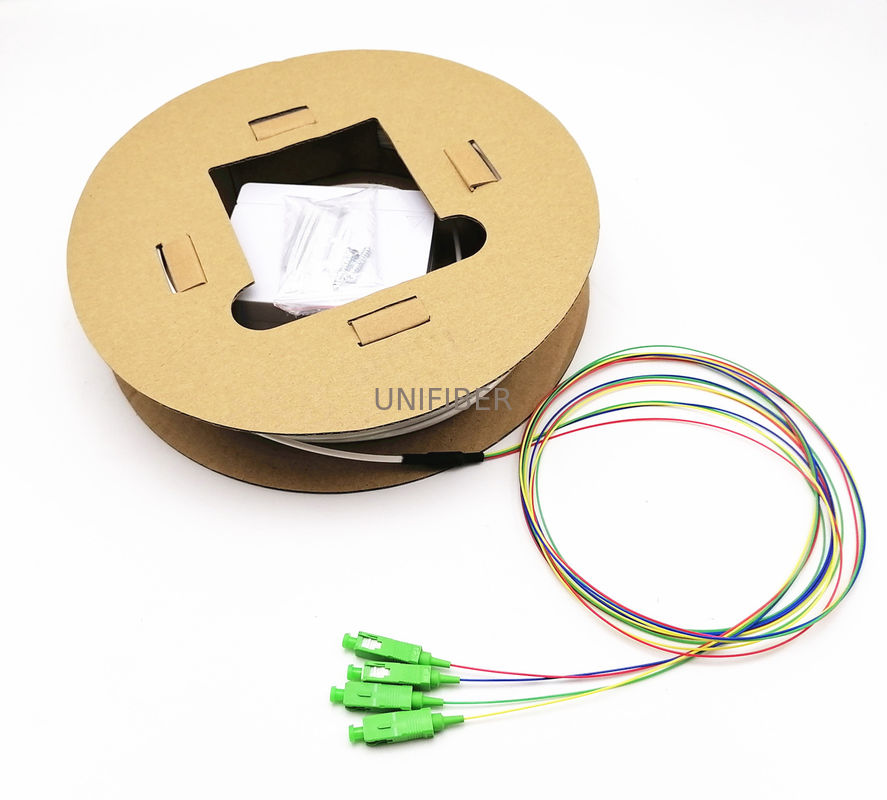

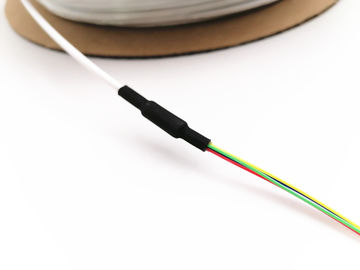

1, 2, 4, ports mini wall socket faceplate pre-loaded with SC/APC shutter adapter and FTTH drop cable G657A1 10m 30m 50m
FTTH Terminal Box is used in FTTH access network, CATV networks and LAN. Suitable for inside applications, with the function of mechanical splice or fusion. With a good dustproof design, fits 4 adapters with a lock structure for protection. White color. This box pre-terminated with drop cable instegrated with ONT(Optic Network Termination) and Composed of 1,2 or 4 fiber directly connected to SCAPC inside of wall outlet, that provide very quick and secured installation from the subscriber to the floor box or multi dwelling unit.
Features
Up to 2/4 FTTH drops
Can accommodate 2 SC/SX adapter or 2 LC/DX adapter
Wall and pole mountable
2 inlet ports, 2 outlet portsIndustry standard user interface, be made of high impact plastic
Anti-UV, ultra violet resistant and rainfall resistant
Application
Widely used in FTTH access network
CATV networks
Data communication networks
Local area Networks
Telecommunication networks
Specifications
| Cable Length | 10,15,20,30,40,50,60,70m...or Specify |
| Size(mm) W*D*H | 100.5*80.5*29mm |
| Color | White |
| Cable Ports | 1/2/4 |
| Max capacity of splice | 4(single fiber) for SC, 8port for LC |
| Adapter type | SC/UPC, SC/APC,LC/UPC,LC/APC |
| Material | PC+ABS |
