Product Details:
Payment & Shipping Terms:
|
| Cable Counts: | 2 Fiber | Cable Jacket: | LSZH,TPU,PE |
|---|---|---|---|
| Cable Diameter: | 4.8mm Or 7mm | Cable Length: | 1/3/5/10m Or Customized |
| Application: | FTTA | Fiber: | G657A |
| High Light: | G657A2 Fiber Optic Patch Cable,Full AXS Fiber Optic Cable |
||

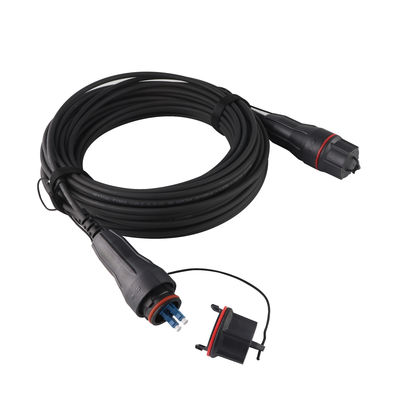

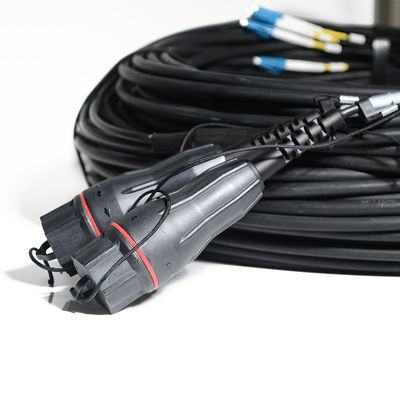

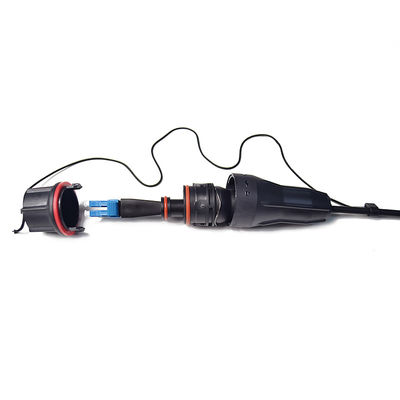

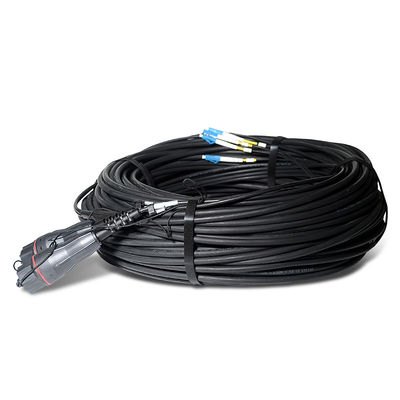

IP67 waterproof outdoor Full AXS LC/UPC duplex hardened fiber optic patch cable G657A2 1~150m
Feature:
Field installable version available
Multimode and singlemode Duplex LC interface
IP67 water, dust proof and corrosion resistant
The material in the jumped cable arweather and Uv-resistant
Open bulkhead for easy access to SFP
Bulkhead cutouts allow for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
Robust bayonet locking for easy, fast, and secure mating
Cost effective glass-filled polymer or metal die casted bulkhead
Application:
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications
Remote Radio Heads (RRH)
Industrial outdoor applications
WiMAX and LTE Base Stations
Multi-purpose Outdoor
Specifications
| tem | Parameter | |
| Single-mode | Multi-mode | |
| Insertion Loss | ≤0.3dB | |
| Return Loss | ≥50 dB (PC), ≥60 dB (APC) | |
| Repeatability | ≤0.1dB | |
| Durability | 0.2dB Max. 1000 mattings | |
| Operating Temperature | -40℃~+85℃ | |
| Storage Temperature | -40℃~+85℃ | |
