Product Details:
Payment & Shipping Terms:
|
| Material: | High-quality PP Plastic | Size: | 160*47*17mm (W X H X D) |
|---|---|---|---|
| Port: | 1 In 1 Out | Adapter Type: | SC Simplex Adapter; LC Duplex Adapter |
| Application: | FTTH | Protection Level: | IP65 |
| High Light: | FTTH Drop Cable Splice Box,PP Plastic Fiber Optic Cabinet |
||

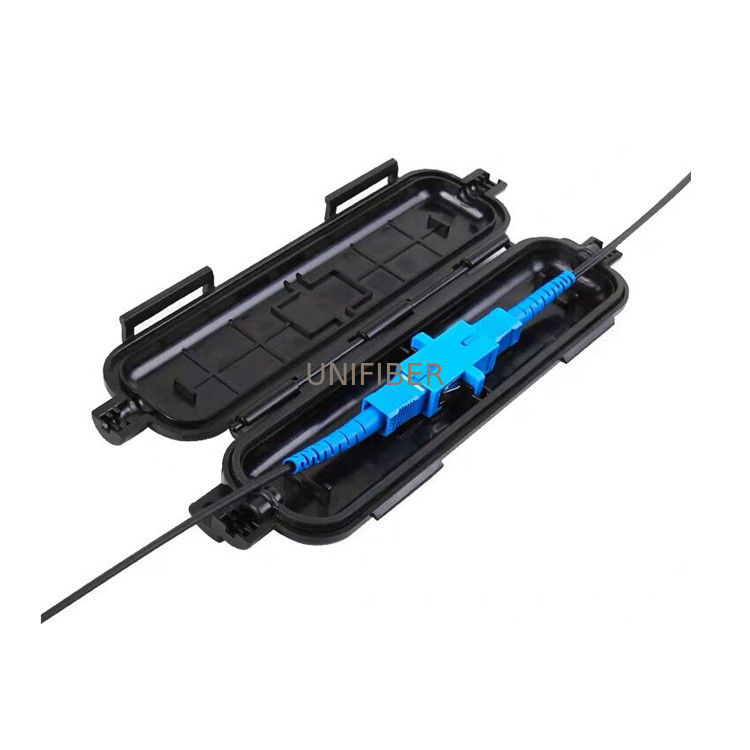

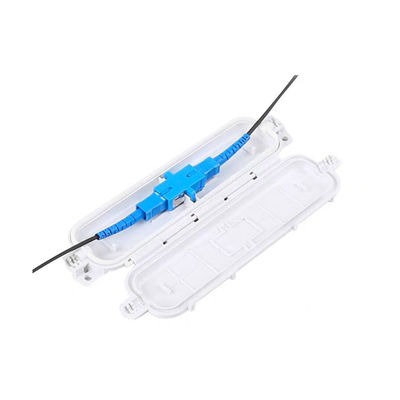

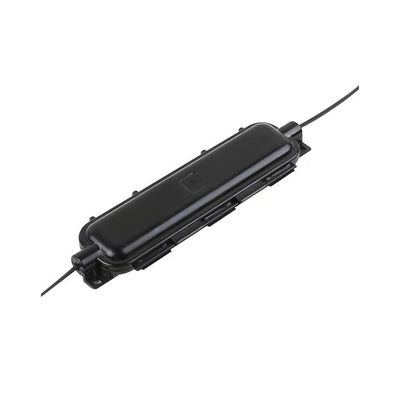

FTTH drop cable splice box compact size
This new type butterfly fiber optic cable protective box is a case to put in a butterfly cable with a thermal protection tube after hot melting, so that the splice spot can get a better protection.Relative to the cold welding, the hot one can improve the optical performance of connector, make the effective connection rate increased to one hundred percent, prolong the service life of the product and lower maintenance costs.
Small size, easy installation.
Waterproof IP65, dust proof.
Max 2 fibers connection (LC Connector).
Indoor outdoor used.
Suitable for 2.0*3.0mm FTTH drop fiber cable and normal fiber cable.
Both Made of high-quality PP Plastic, silicone ring seal between the cover and bottom.
| Type | UNF-1601-1A |
| Size(mm) W*D*H | 106*47.9*16mm |
| Material | PP |
| Scope of Application | 3.0*2.0mm drop cable or indoor cable |
| IP Grade | IP65 |
| Adapter type | SC Simplex Adapter; LC Duplex Adapter |
| Color | White or Black |
Contact Person: Kerry Sun
Tel: +86-135-9019-2305
