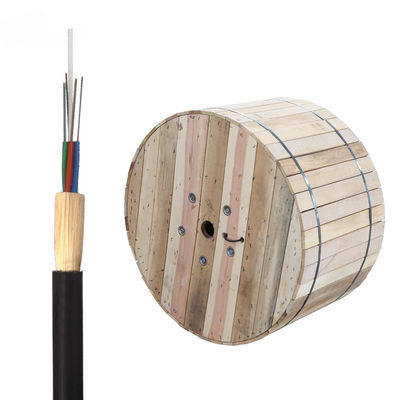

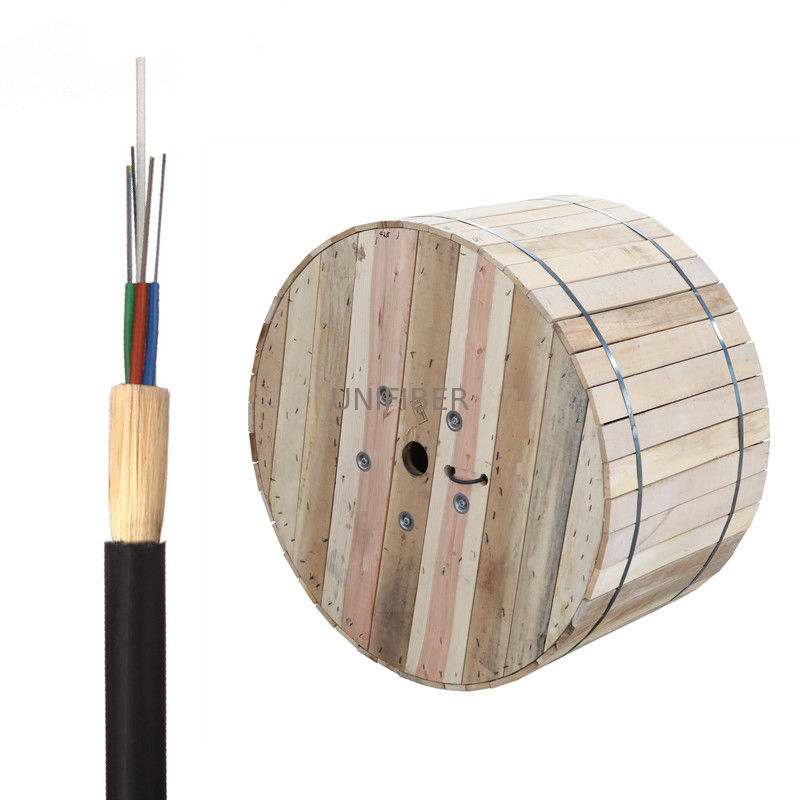

HDPE Sheath G652D ADSS Overhead Fiber Optic Cable 100~500m Span

G652D Aerial All-dielectric self-supporting (ADSS) fibre optic cable single jacket 100~500m span HDPE outer sheath

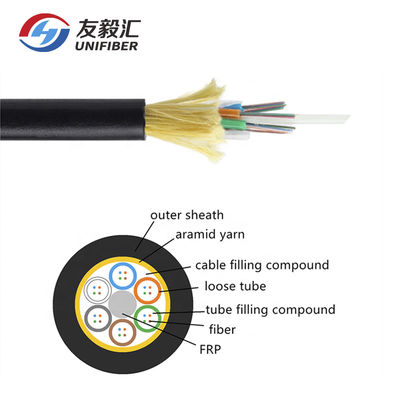

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Features:

Self-supporting
Loose tube design

Sutable for Aerial self-support installation

Instead of Aramid yarn or glass yarn,there is no support or messenger wire required.

Stable performance and compatibility with all common fiber types

Track-resistant &jacket available
For 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the resistance to corrosion(AT) outer sheath.


Application
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
