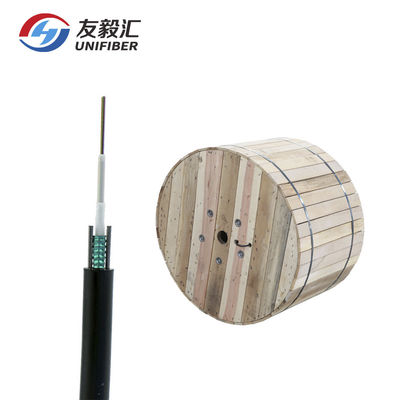

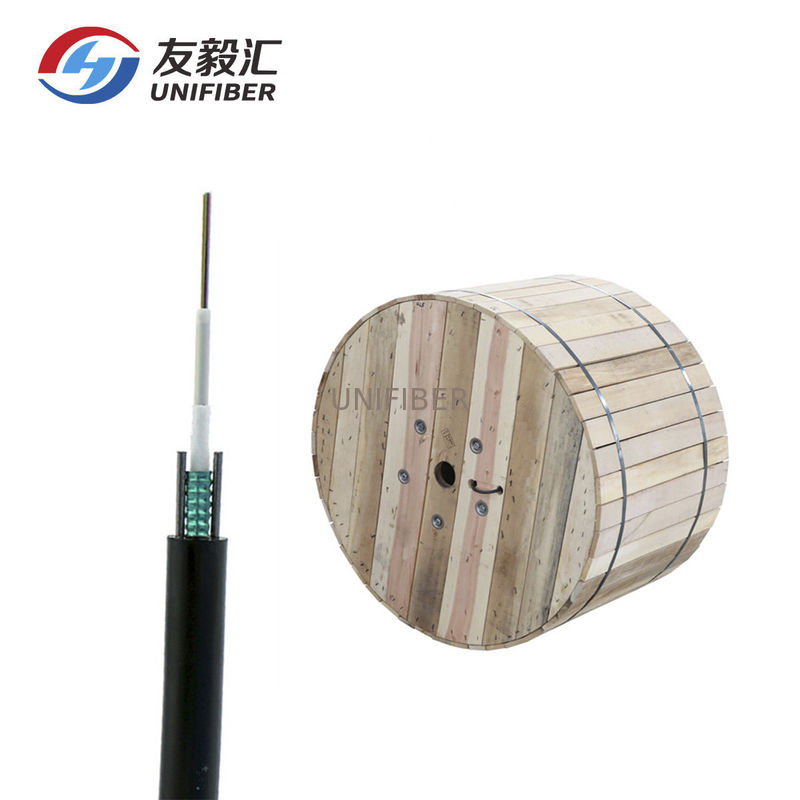

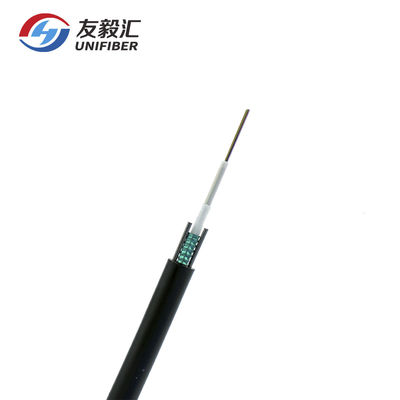

Overhead Fiber Optic Cable 12/24/36/48 core Outdoor Armoured Non Metallic Single Mode G652D PE Sheath GYXTW

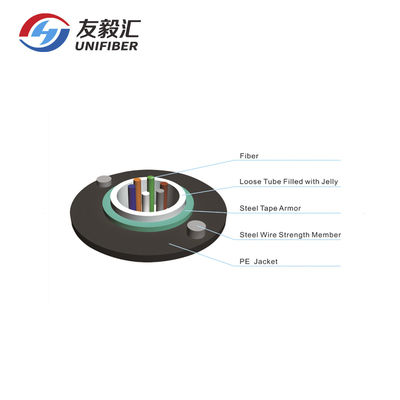

The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.
Features
High strength loose tube that is hydrolysis resistant
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Crush resistance and flexibility
Good mechanical and temperature performance
Special tube filling compound ensure a critical protection of fiber
PSP enhancing moisture-proof
Storage / Operating Temperature: -40℃~+70℃
Application
Usable in Duct / Aerial
Fiber Parameter
No. | Items | Unit | Specification | |
G.652D | ||||
1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
1550nm | μm | 10.4±0.5 | ||
2 | Cladding Diameter | μm | 124.8±0.7 | |
3 | Cladding Non-Circularity | % | ≤0.7 | |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
5 | Coating Diameter | μm | 245±5 | |
6 | Coating Non-Circularity | % | ≤6.0 | |
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
9 | Attenuation (max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dB/km | ≤0.24 |
Cable Parameters
Items | Specifications | |
Fiber Count | 2~24 | |
Colored Coating Fiber | Dimension | 250µm±15µm |
Color | Blue, Orange, Green, Brown, Gray, White | |
Loose Tube | Dimension | 2.10mm±0.05mm |
Material | PBT | |
Color | Natural | |
Strength Member | Diameter | 1.0mm |
Material | Steel | |
Outer Jacket | Dimension | 8.0mm±0.1mm |
Material | PE | |
Color | Black |
Mechanical and Environmental Characteristics
Items | Unite | Specifications |
Tensio (Long Term) | N | 600 |
Tension (Short Term) | N | 1500 |
Crush (Long Term) | N/10cm | 300 |
Crush (Short Term) | N/10cm | 1000 |
Min. Bend Radius (Dynamic) | mm | 20D |
Min. Bend Radius (Static) | mm | 10D |
Installation Temperature | ℃ | -20~+60 |
Operating Temperature | ℃ | -40~+70 |
Storage Temperature | ℃ | -40~+70 |
Technical Parameter
Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic (mm) |
2~12 | 10.6 | 124 | 1000/3000 | 1000/3000 | 10D/20D |
14~24 | 12.0 | 147 | 1000/3000 | 1000/3000 | 10D/20D |
Transmission Characteristics | |||||
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Max Attenuation (dB/km) (+20℃) |
850 nm | 3.0 | 3.3 | ||
1300 nm | 1.0 | 1.0 | |||
1310 nm | 0.36 | 0.4 | |||
1550 nm | 0.24 | 0.23 | |||
Cable Cute-off Wavelength (nm) | ≤1260 | ≤1450 |
