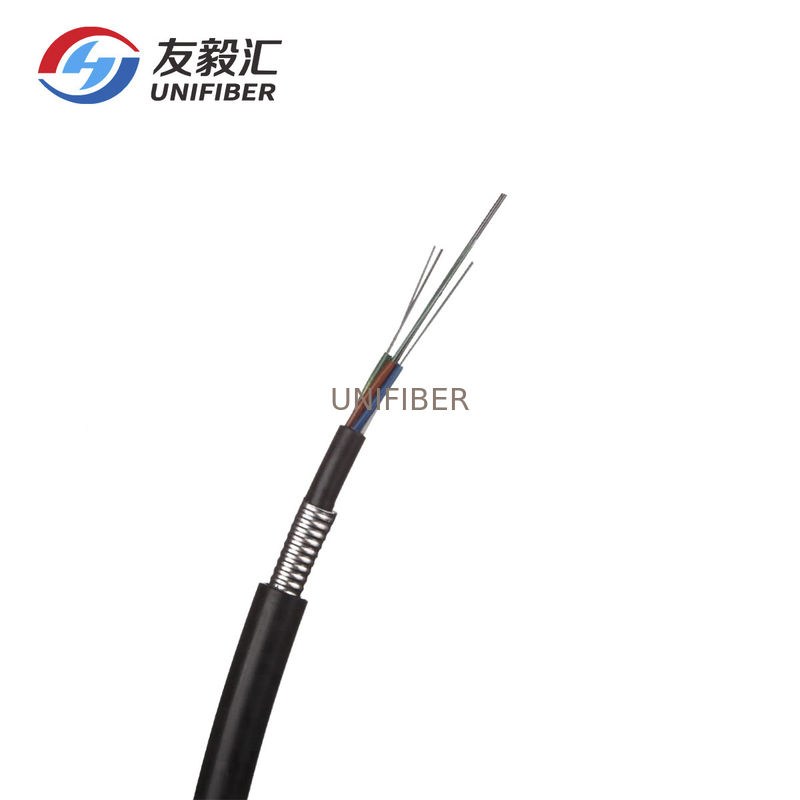

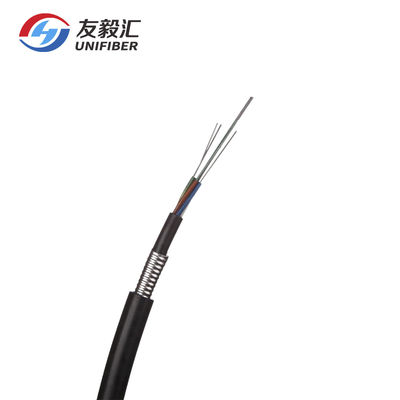

12 24 Core Duct Direct Burial Armoured Optical Cable GYFTY53

12 24 Core Duct Direct Burial Armoured Optical Cable GYFTY53
12 24 Core Duct Direct Burial Armoured Optical Cable GYFTY53 12 24 Core Duct Direct Burial Armoured Optical Cable GYFTY53

Large Image :  12 24 Core Duct Direct Burial Armoured Optical Cable GYFTY53

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS,CE,UL
Model Number: GYFTY53
Payment & Shipping Terms:
Minimum Order Quantity: 1KM
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 5-8days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000km/month
Detailed Product Description
Fiber Count: 2-288 Core Fiber: G652D
Armored: Steel Tape Jacket: PE Sheath
Structure: Stranded Loose Tube(GYFTY53) Application: Duct / Direct Burial
High Light:

Burial Armoured Optical Cable

,

GYFTY53 Armoured Optical Cable

,

Direct Buried Singlemode Optic Cable

GYTA Outdoor Aerial Duct 12/24/48/72 strand Loose Tube Aluminum Steel Tape Armored long distance fiber optic cable

In the GYTY53 cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. Then the cable is completed with a PE sheath. Which is filled with the filling compound to protect it. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.



Features:
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
pecial tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
PE/LSZH sheath protects cable from ultraviolet radiation
100% cable core filling



Application:
Long distance and local area network communication.
Adopted to outdoor distribution;
Suitable for aerial, pipeline laying method;



Parameters

Fiber count
2~8
12
24
36
48
72
96
144
Fiber No. per tube
6
12
Loose tube diameter
2.0mm
2.2
Central strength member diameter (FRP or steel wire )
2.0mm
2.4mm
PE+FRP
Outer sheath thickness
1.8mm
Cable OD mm
9
9
9
10
10.8
11.5
13.3
17.5
Cable weight kg/km
130
130
135
135
145
150
160
185
Operation temperature range
-40 d℃ to + 70 ℃
Installation temperature range
-40 ℃ to + 70 ℃
Transport and storage temperature range
-40 ℃ to + 70 ℃
12 24 Core Duct Direct Burial Armoured Optical Cable GYFTY53 0

12 24 Core Duct Direct Burial Armoured Optical Cable GYFTY53 1
