Product Details:
Payment & Shipping Terms:
|
| Fiber: | G652D,G657A,OM1,OM2,OM3,OM4 | Laying Method: | Overhead |
|---|---|---|---|
| Fiber Count: | 2-288 Core | Package: | 2km/roll,3km/roll Or Customized |
| Structure: | Figure 8 Self-supporting | Armored: | Corrugated Steel Tape |
| High Light: | GYTC8A Fiber Optic Cable,GYTC8S Fiber Optic Cable,144 Core Fiber Breakout Lead |
||

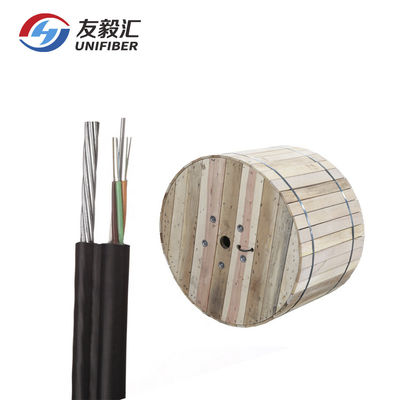

GYTC8S/GYTC8A Outdoor Overhead Self Support Figure 8 Fiber Optic Cable 12 24 36 48 72 96 144 Cores

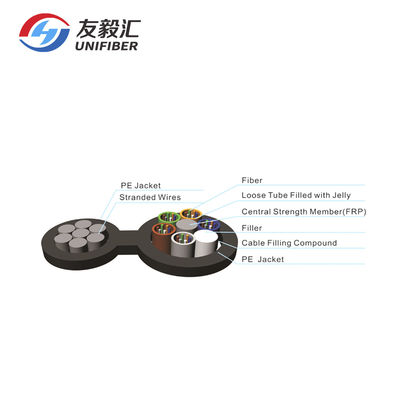

The GYTC8S/GYTC8A cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After a PSP/APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.
Features
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
pecial tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
PE/LSZH sheath protects cable from ultraviolet radiation
100% cable core filling
Application
Long distance and local area network communication.
Adopted to outdoor distribution;
Usable in Duct / Aerial
Technical Parameters
| Cable Count | Out sheath Diameter |
Weight |
Minimum allowable Tensile Strength |
minimum allowable Crush Load |
Minimum Bending Radius |
Storage temperature |
|||
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) | |
| 6 | 3.0×9.8 | 54.00 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 12 | 3.0×9.8 | 54.00 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 24 36 42 | 7.0×14.5 | 210.0 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 48 | 7.0×15.5 | 210.0 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 72 | 7.0×15.5 | 245.0 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 144 | 7.0×15.5 | 285.0 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
