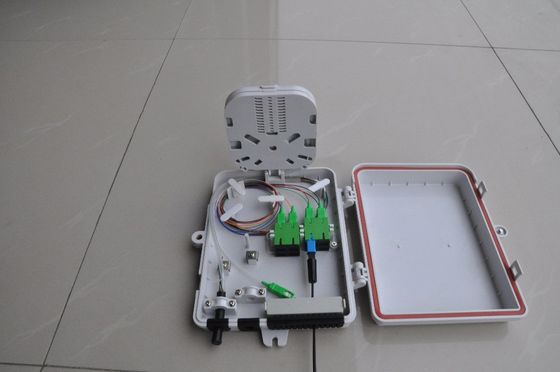

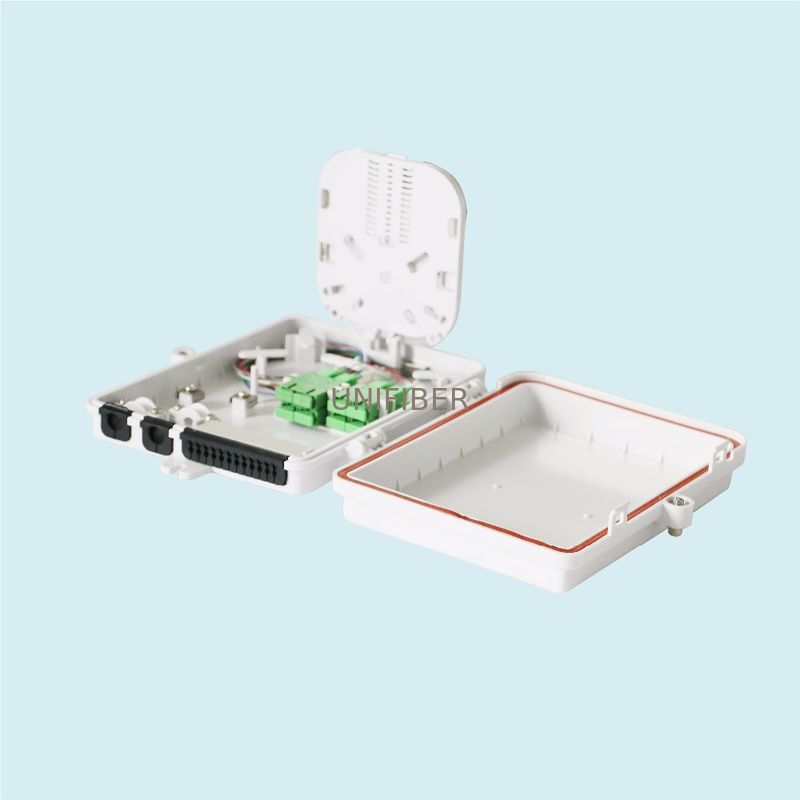

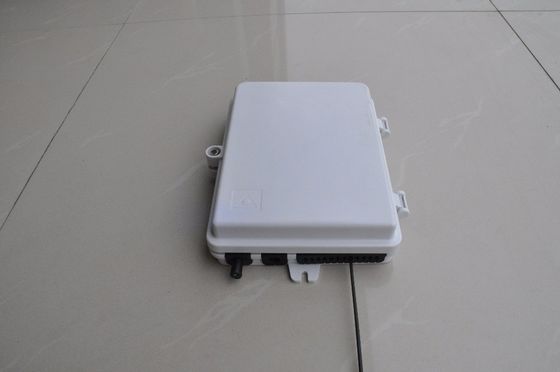

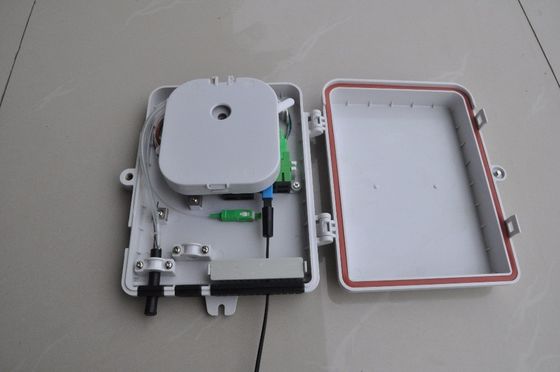

IP65 24 Drops 1x4 1X8 FTTH Optical Distribution Box

IP65 24 Drops 1x4 1X8 FTTH Optical Distribution Box
IP65 24 Drops 1x4 1X8 FTTH Optical Distribution Box IP65 24 Drops 1x4 1X8 FTTH Optical Distribution Box IP65 24 Drops 1x4 1X8 FTTH Optical Distribution Box IP65 24 Drops 1x4 1X8 FTTH Optical Distribution Box

Large Image :  IP65 24 Drops 1x4 1X8 FTTH Optical Distribution Box

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: FDB208
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 5~7 Business days
Payment Terms: L/C, T/T
Supply Ability: 500pcs/day
Detailed Product Description
Fiber Ports: Up To 24 Single Fiber Material: ABS Or PC
Protective Level: IP65 Dimension: 200*150*46
Color: White Application: FTTH FTTB FTTX Network
High Light:

1X8 FTTH Optical Distribution Box

,

IP65 FTTH Optical Distribution Box

,

24 Drops PLC Splitter Box

FTTH optical distribution box, 1x4 or 1X8 PLC splitter, up to 24 drops

This Optical distribution box are applicable in FTTH project; Suitable for corridor, basement, room and building's outer walls application; It may distribute cables after installed splitters, it also may draw out room fiber optic cables by direct or cross –connections. It is with the function of mechanical splice, fusion splice, light splitting, wiring distributions


Features:

Can accommodate 1x4 & 1X8 PLC splitter

Can assembly two splice trays and accommodate 24 FTTH optic cables

Two open cable ports can be realized without breaking the cable

Wall mounted and pole mounted
2 inlet ports, 24outlet ports

Industry standard user interface, be made of high impact plastic
Anti-UV, ultra violet resistant and rainfall resistant
Up to 24 FTTH drops



Application

Widely used in FTTH access network.
CATV Networks
Local Area Networks

Data communications Networks

Telecommunication Networks



Specification

Model Capacity Size
FDB208/0224 24 port 200mm(W)x150mm(D)x46mm(D)



IP65 24 Drops 1x4 1X8 FTTH Optical Distribution Box 0
