Anti UV 4 Port SC ABS FTTH Fiber Optic Terminal Box

Anti UV 4 Port SC ABS FTTH Fiber Optic Terminal Box
Anti UV 4 Port SC ABS FTTH Fiber Optic Terminal Box Anti UV 4 Port SC ABS FTTH Fiber Optic Terminal Box Anti UV 4 Port SC ABS FTTH Fiber Optic Terminal Box

Large Image :  Anti UV 4 Port SC ABS FTTH Fiber Optic Terminal Box

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER
Certification: ROHS
Model Number: FTB104C
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
Material: ABS+PC Cable Ports: 1 Input Port And 4 Output Ports
Dimension: 212x144x42 Connector: SC,FC,LC
Color: White Cable Diameter: 7.0mm~10.0mm
High Light:

FTTH Fiber Optic Terminal Box

,

ABS Fiber Optic Terminal Box

,

Anti UV Fiber Termination Cabinet

FTTH 4 port fiber optic terminal box SC

FTB-104C Fiber Optical Terminal Box is used in the end termination of residential building and villa, to fix and splice with Pigtails or connected fast connectors can be installed on the outside wall. For connecting up to 8 LC or 4 SC/FC connectors. In order to prevent access by unauthorized people, the box door is equipped with a lock and key. In addition, the box can be sealed.



Features

White color, graceful style and good adaptability to environment.
Anti-UV, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
Made of high quality ABS+PC, anti-collision, flame retardant, resistance to impact. All the materials complied with ROHS standard.
Remarkable laser warning identification.

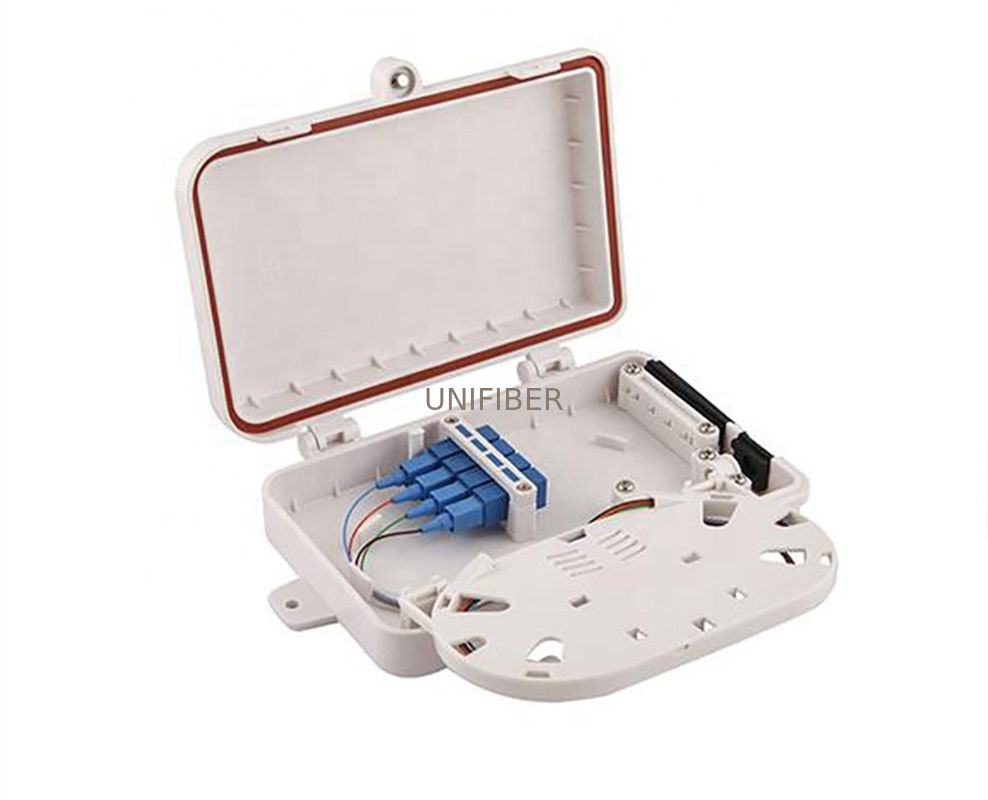

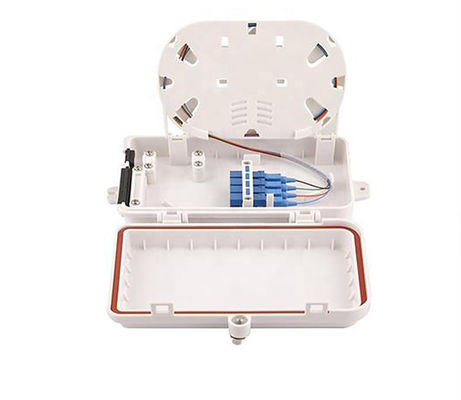

Internal termination box can house up to 4 SC simplex or 1 LC duplex adaptors
The base and cover of the box adopts self-clip & screw-clip two times lock method, which is better to use in outdoor for high sealing and waterproof.
Special design ensures the excess fiber cords and cables in good order, effectively prevent the miss-operation.
Easy operation, saving installation working hours, lower costs.



Application
Widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks





Specification:

Type Dimensions(mm) Cable diameter(mm) Cable ports Suitable adapter Max capacity
FTB-104B 150*110*30 φ7-φ10 5 SC 4
FTB-104C 210*140*40 φ7-φ10 7 SC 6
FTB-106C 210*140*40 φ7-φ10 7 SC 6

Anti UV 4 Port SC ABS FTTH Fiber Optic Terminal Box 0Anti UV 4 Port SC ABS FTTH Fiber Optic Terminal Box 1Anti UV 4 Port SC ABS FTTH Fiber Optic Terminal Box 2
