G657A1 G657A2 Ftth Sc/Upc Sc/Apc 1x8 Plc Splitter Cassette

Name: G657A1 G657A2 Ftth Sc/Upc Sc/Apc 1x8 Plc Splitter Cassette
Brand: UNIFIBER
SKU: PLC
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (162 reviews)

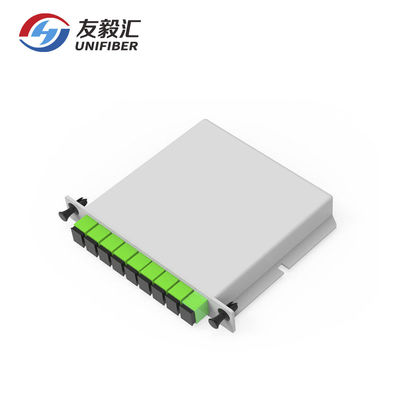

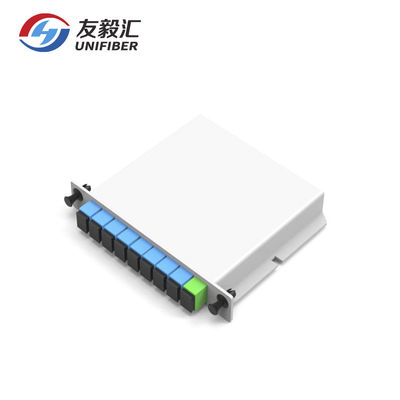

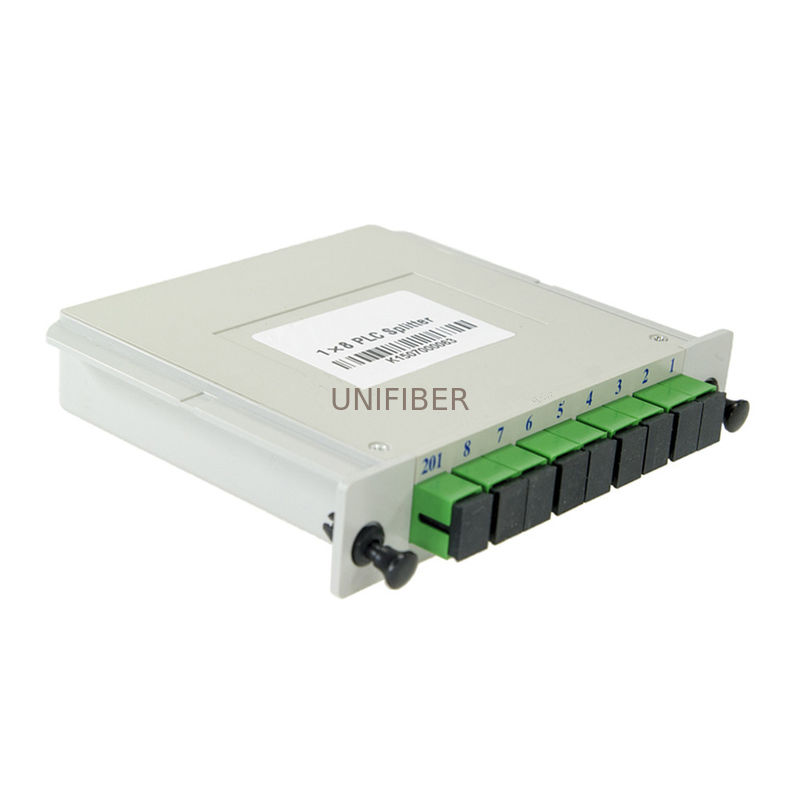

Large Image : G657A1 G657A2 Ftth Sc/Upc Sc/Apc 1x8 Plc Splitter Cassette

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER
Certification:	ROHS
Model Number:	PLC

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Carton Box
Delivery Time:	5~8 business days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Package Style:	ABS Box,Mini Steel Tube,LGX Cassette,Rack Mounted Type	Configuration Type:	1x2,1x4,1x8,1x16,1x32,1x64
Connector:	SC,LC,FC,ST Or Customzied	Fiber Type:	G657A1 Or G657A2
Cassette Material:	ABS Or PC+ABS	Operation Wavelength:	1260nm~1650nm
High Light:	1x8 Plc Splitter Cassette , Sc/Up Plc Splitter Cassette , Ftth Fiber Optic Cable Splitter

1x8 plc splitter cassette ftth sc/upc sc/apc
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.UNIFIBER provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

APPLICATION

FTTx Systems
CATV systems

LAN,WAN and Metro Networks

Digital, hybrid and AM-Video systems
Other applications in fiber optic systems

FEATURES

Good uniformity and low insertion loss
Low Polarization Dependent Loss
Stability Telcordia GR-1221 and GR-1209

Excellent Environmental Stability
Excellent Mechanical

Specification

Parameters
Parameters	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformit(dB)	0.4	0.6	0.8	1.2	1.5	2	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Return Loss(dB)(P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50	55/50
Directivity(dB)	55	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Stability (-40~85℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Operating Temperature(℃)	-40~+85
Storage Temperature(℃)	-40~+85
Device Dimension(mm)	40×4×4	40×4×4	40×4×4	50×7×4	50×7×4	60×12×4	N/A
Module Dimension(mm)	100×80×10			120×80×18	141×115×18
Mini-Module Dimension(mm)	50×7×4			60×12×4	80×20×6	100×40×6	N/A

G657A1 G657A2 Ftth Sc/Upc Sc/Apc 1x8 Plc Splitter Cassette 0
