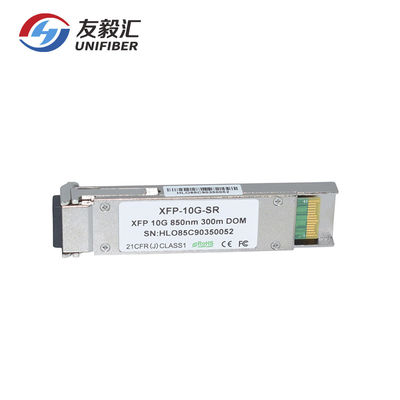

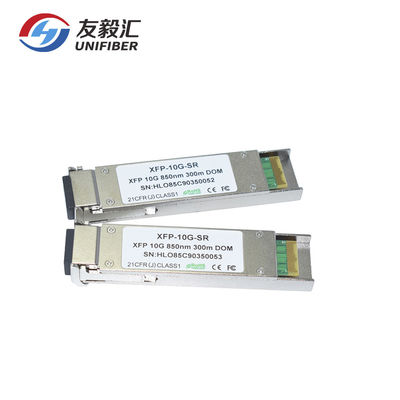

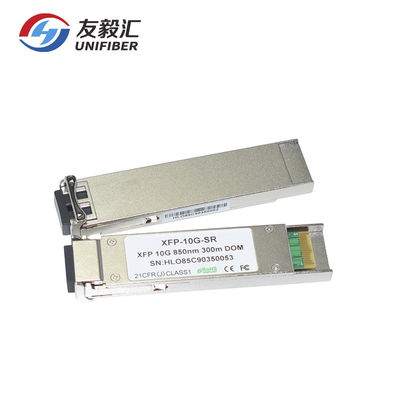

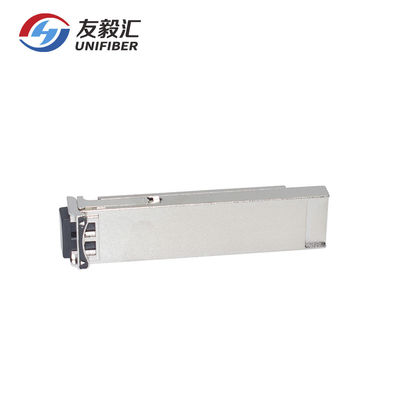

LC XFP 10G SR 850nm 300m DOM Fiber Optic Transceiver

LC XFP 10G SR 850nm 300m DOM Fiber Optic Transceiver
LC XFP 10G SR 850nm 300m DOM Fiber Optic Transceiver LC XFP 10G SR 850nm 300m DOM Fiber Optic Transceiver LC XFP 10G SR 850nm 300m DOM Fiber Optic Transceiver LC XFP 10G SR 850nm 300m DOM Fiber Optic Transceiver

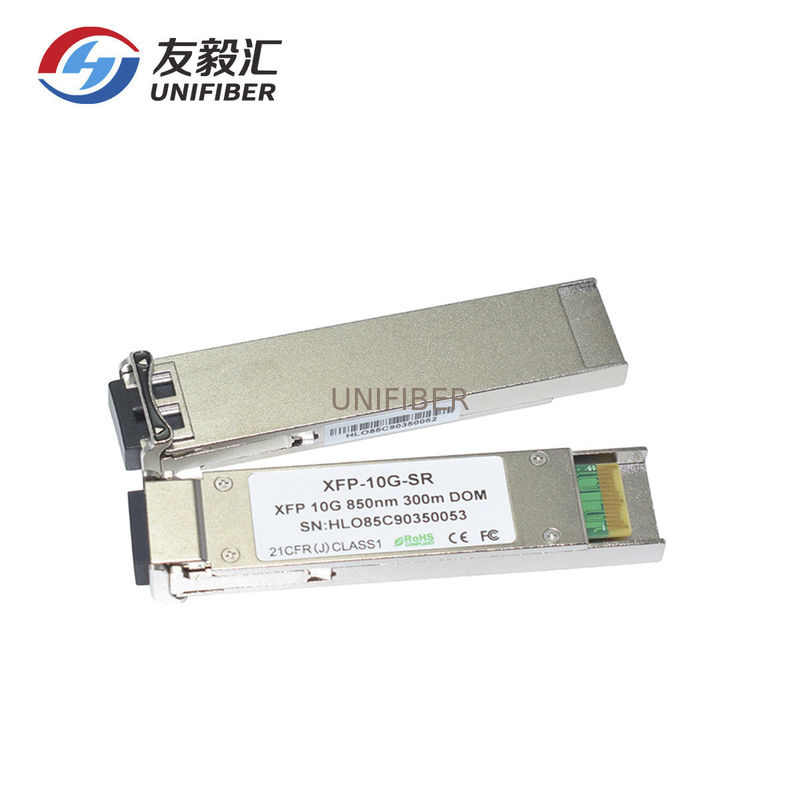

Large Image :  LC XFP 10G SR 850nm 300m DOM Fiber Optic Transceiver

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: 10G XFP
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Static bag, Plastic bag, Retail box
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Wavelength: 850nm Data Rate: 10G
Interface: LC Transmission Distance: 300m
Compatiable: HP, Huawei, H3C, Alcatel, Juniper Or Others Form Factor: 10G XFP
Certification: CE RoHS FCC Brands: Can Be Customized
High Light:

DOM Fiber Optic Transceiver

,

850nm Fiber Optic Transceiver

,

XFP 10G Optical Transceiver Module

XFP 10G SR 850nm 300m Optical Transceiver Module DOM

XFP SR is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-SR) or 9.953Gbps (10GBASE-SW), and transmission distance up to 300m on 50μm MMF (2000MHz.km).The transceiver module comprises a transmitter with 850nm a vertical cavity surface emitting (VCSEL) laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10G systems.





FEATURES :

Supports 9.95Gbps to 11.1Gbps bit rates
Maximum link length of 300m (50um,MMF,2000MHz.Km)
850nm VCSEL laser and PIN receiver
XFP MSA Rev 4.5 Compliant
No reference clock required
+1.8V,+3.3V Supply Voltage
Low Power Dissipation 1.5W Maximum
XFI and lineside loopback Mode Supported
0ºC to 70ºC Operating Case Temperature
Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, andreceive optical power
RoHS6 compliant (lead free)


APPLICATIONS :

10GBASE-SR/SW 10G Ethernet
1200-Mx-SN-I 10G Fiber Channel
Other optical links





Brand Compatible

LC XFP 10G SR 850nm 300m DOM Fiber Optic Transceiver 0



Ordering Information:

Package (Form Factor)
XFP
Data Rate (typical)
10.3 Gb/s
Centre Wavelength
850nm
Distance
300m
Diagnostics
Digital Monitor
Transmitter
VCSEL Laser
Receiver
PIN photo detector
TX Output Power (dBm)
-7.3~-1
RX Sensitivity (dBm)
-11
Low/High Case Temperature
0°C~70°C
Voltage Supply (typical)
3.3v
Connector
Duplex LC/UPC





LC XFP 10G SR 850nm 300m DOM Fiber Optic Transceiver 1LC XFP 10G SR 850nm 300m DOM Fiber Optic Transceiver 2
