Product Details:
Payment & Shipping Terms:
|
| Wavelength: | 1550nm | Data Rate: | 10G |
|---|---|---|---|
| Interface: | LC | Transmission Distance: | 40km |
| Compatiable: | HP, Huawei, H3C, Alcatel, Juniper Or Others | Form Factor: | 10G XFP |
| Certification: | CE RoHS FCC | Brands: | Can Be Customized |
| High Light: | DDM Optical Transceiver Module,1550nm Optical Transceiver Module,40km Fiber Transceiver Module |
||

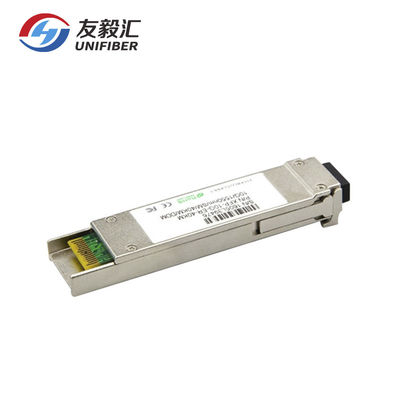

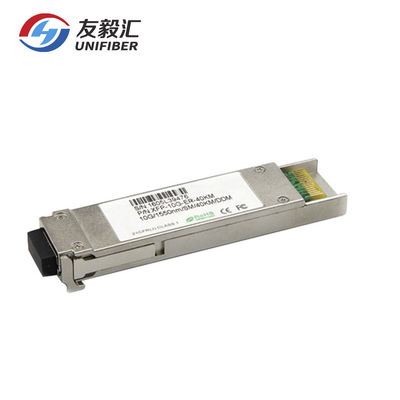

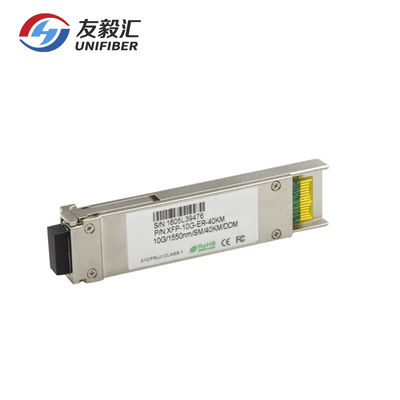

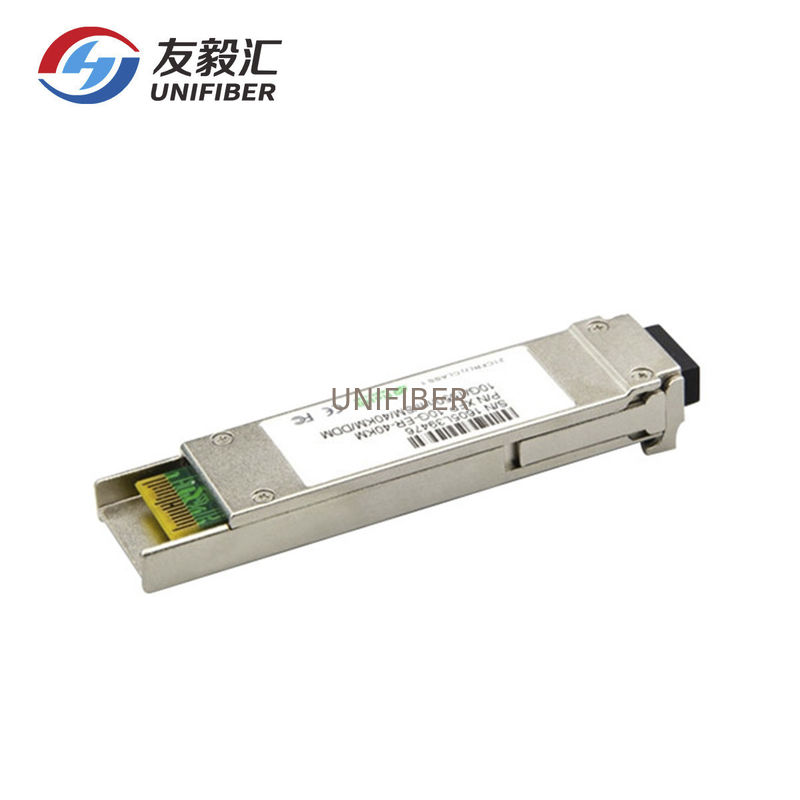

10G XFP ER 1550nm 40km Dual LC Optical Transceiver Module DDM
XFP ER transceiver comply with XFP 4.5MSA, and can support diverse applications for SDH/SONET equipment including FEC (9.95Gb/s to 10.7Gb/s),as well as Ethernet LAN(10.325Gb/s) and WAN(9.95Gb/s) applications.The high performance cooled 1550nm cooled EMLtransmitter and high sensitivity PIN receiver.
FEATURES :
XFP MSA Rev 4.5 Compliant
Data rate from 9.95Gbps to 11.3Gbps
No Reference Clock required
Cooled 1550nm EML and PIN receiver
link length up to 40km
+1.8V,+3.3V,+5V Supply Voltage
Low Power Dissipation 3.5W Maximum
XFI and lineside loopback Mode Supported
-5ºC to 70ºC Operating Case Temperature
Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, and receive optical power
RoHS6 compliant (lead free)
APPLICATIONS :
SONET OC-192&SDH STM 64 (with/with out FEC)
10GBASE ER/EW (with/with out FEC)
10G Fiber Channel
Brand Compatible
Ordering Information:
