Fiber Ports: | 24 Ports | Material: | ABS Or PC |
---|---|---|---|
Protective Level: | IP65 | Dimension: | 260mm(W)x320mm(D)x90mm(D) |
Color: | White | Application: | FTTH FTTB FTTX Network |
High Light: | FTTB Fiber Optic Termination Box,FTTH Fiber Optic Termination Box,ABS FTTH Optical Terminal Box |

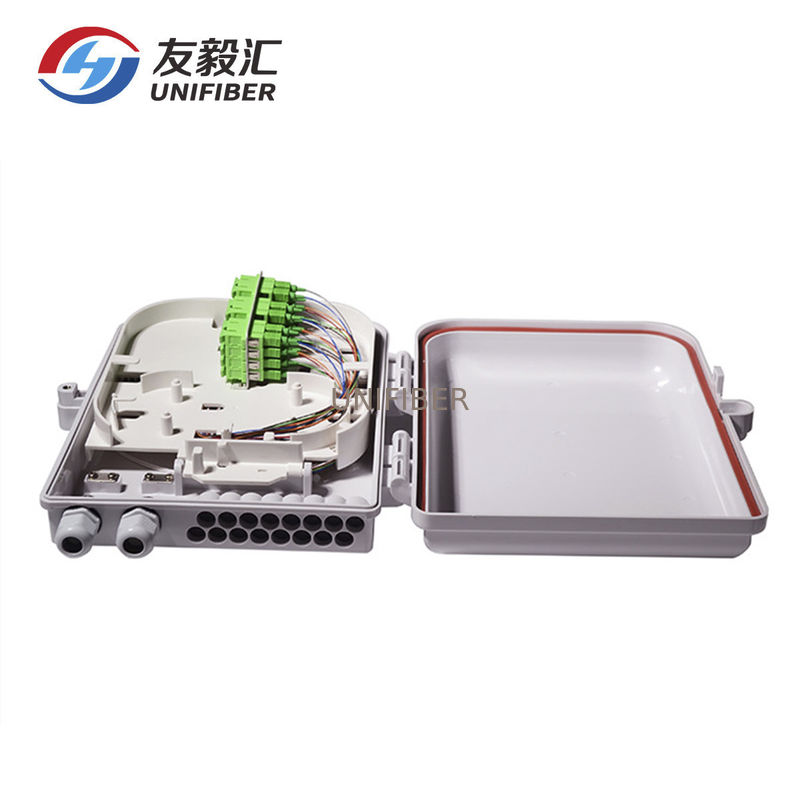

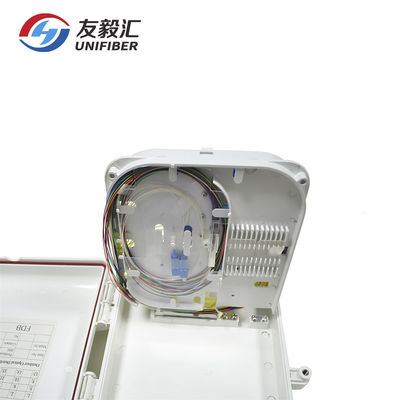

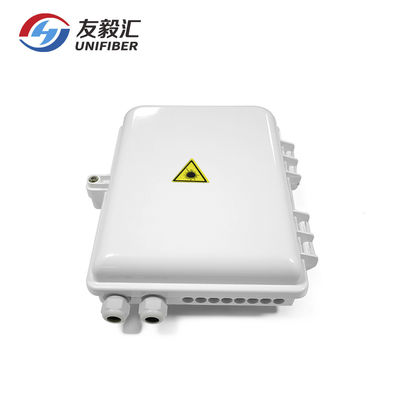

24 Core Fiber Optical Terminal Box SC, 2 inlet ports+24 outlet ports, high impact plastic
FDB series are applicable in FTTH project; Suitable for corridor, basement, room and building's outer walls application; It may distribute cables after installed splitters, it also may draw out room fiber optic cables by direct or cross –connections. It is with the function of mechanical splice, fusion splice, light splitting, wiring distributions
Features:
Industry standard user interface,be made of high impact plastic
Anti-UV, ultra violet resistant and rainfall resistant
Up to 24 FTTH drops
Wall mounted and pole mounted
2 inlet ports, 24outlet ports
Application
Widely used in FTTH access network.
CATV Networks
Local Area Networks
Data communications Networks
Telecommunication Networks
Specification
Model | Capacity | Size |
FDB0224 | 24port | 260mm(W)x320mm(D)x90mm(D) |
