Product: | Flat Fiber Optic Drop Wire | Fiber: | G652D/G657A1/G657A2/G657B3 |
---|---|---|---|
Fiber Count: | 1~24 Core | Strength Member: | FRP Or Steel Wire |
Outer Sheath: | LSZH/PE | Color: | Black |
High Light: | FTTH Fiber Optic Drop Wire,G657A1 Fiber Optic Drop Wire,PE Sheath Optic Ethernet Cable |

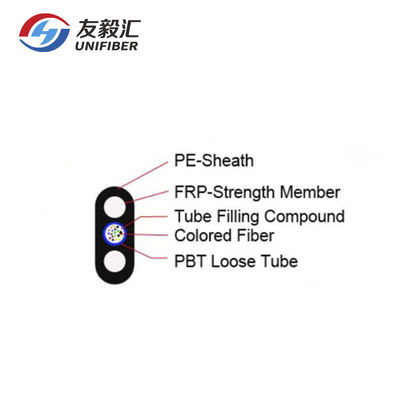

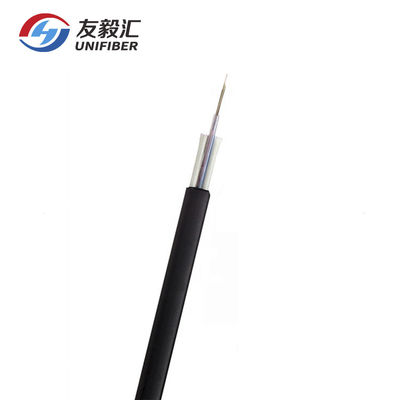

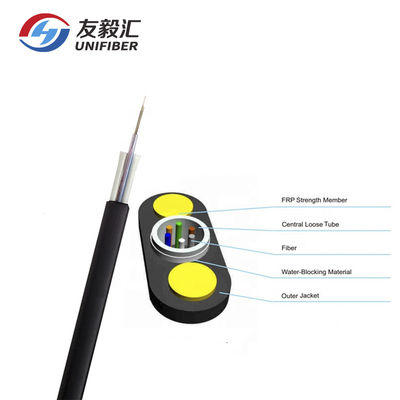

1~24 Core FTTH Outdoor Flat Fiber Optic Drop Wire G657A1 PE Sheath ,Designed for quick installation and ease in handling, serves as the last link for the FTTx networks of today. The design is Uni-Loose Tube containing up to 24 fibers.Two embedded FRP member to provide the mechanical properties of the cable. The finished product, with its compact size, acts as a self-supporting aerial solution for those last mile drops to the home or office.
Features
Good mechanical and environmental characteristics and anti-rodent;
The mechanical characteristics meets the requirements of relevants standards;
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.
Application
Used as access building cable.
Used in horizontal and vertical cabling , especially used for FTTH.
Indoor cabling under carpet and along corner.
Specification
Fiber Count
|
Nominal Diameter (mm)
|
Nominal Weight (kg/km)
|
Allowable Tensile Load (N)
|
Allowable Crush Resistance (N/100mm)
|
Aerial Install span with 1%sag
|
||||
Short Term
|
Long Term
|
Short Term
|
Long Term
|
NESC Light
|
NESC Medium
|
NESC Heavy
|
|||
2~12
|
4.5*8.0
|
39
|
1800
|
750
|
2000
|
800
|
100meters
|
80meters
|
50meters
|
14~24
|
4.9*8.4
|
45
|
1800
|
750
|
2000
|
800
|
80meters
|
60meters
|
40meters
|
