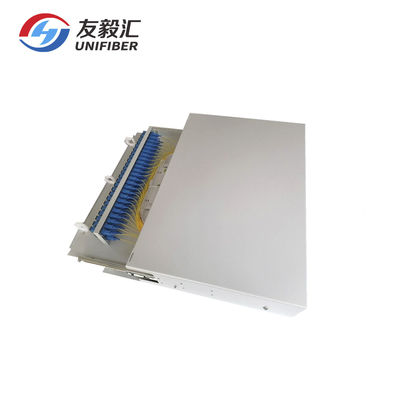

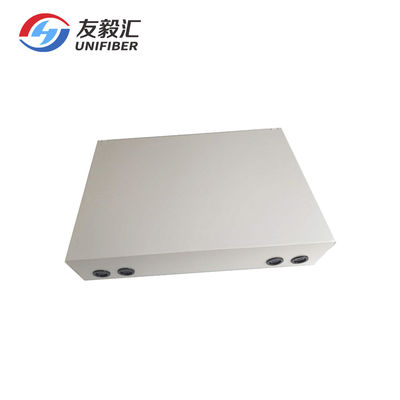

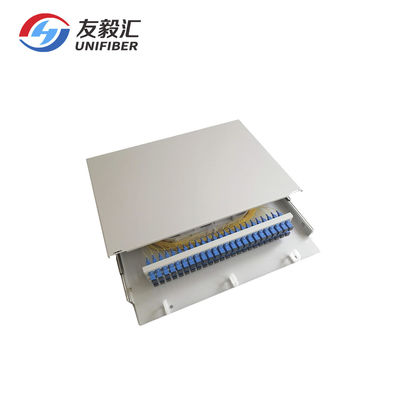

0.9mm Pigtails 2U SC OS2 G657A1 Fiber Optic Enclosure Box 48 Port

19/23" Rack Mount Fiber Optics Patch Panel Enclosure Box 2U SC 48 Port, OS2, Single Mode, G657A1, 0.9mm Pigtails

Slidable Rack-mount Fiber Optic Distribution Frame has sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.GPZ/JJ-CLD series optical fiber terminal box can be applied in the branch connection of fiber termination,working as distribution box,19’’standard structure,rack mounting,available for the installation of FC,SC,ST,LC adaptors.

Features.
* All property indexes are in accordance with National YD/T925—1997
* The body make use of cold rolling steel sheet Strong adhesive force, artistic and durable.
* Distinctive design of 1-6 cable entrance and fiber exit of 1-24 cores assures flexibility.
* Cable entrance are sealed with oil resistance NBR to increase the flexibility. Users can choose to prick the entrance and exit.
* Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.

Specifications
* External Size: (length×width×height) 430x300x(1U~7U)
* optical fiber winding radius: ≥40mm
* extra loss of fiber tray:none
* fiber length left in tray:≥1.6m
* fiber capacity: 12~288 cores
* working temperature: - 400C ~ + 600C
* lateral pressure-resistance: 500N
* shock-resistance:750N

Operations
* Peel the cable , take off the outer and inner housing, as well as loose contract tube, and wash off the filling grease,
leaving 1.1～6m fiber and 20～40mm steel core.
* Fix the cable-pressing card and the cable, as well as the cable reinforce steel core.
* Lead the fiber into the melting and connecting tray, fix heat contract tube and melted tube to one of the connecting fiber.
After melting and connecting the fiber, move heat contract tube and melted tube and fix the stainless (or quartz) reinforce
core stick ,make sure the connecting point is in the middle of the housing pipe. Heat the pipe to make the two into one.Put the
protected joint into the fiber-laying tray.(one tray can lay 24 cores)
* Lay the left fiber in the melting and connecting tray evenly, and fix the winding fiber with nylon ties. Use the trays from
the bottom up. After all the fiber has been connected, cover the top layer and fix it.
* Position it and use the earth wire in accordance with the project plan.

Packing List
* terminal case main body: 1 piece
* polishing sand cloth: 1 pcs
* Mounting ears :1 set (include mounting screws)
