Product Details:
Payment & Shipping Terms:
|

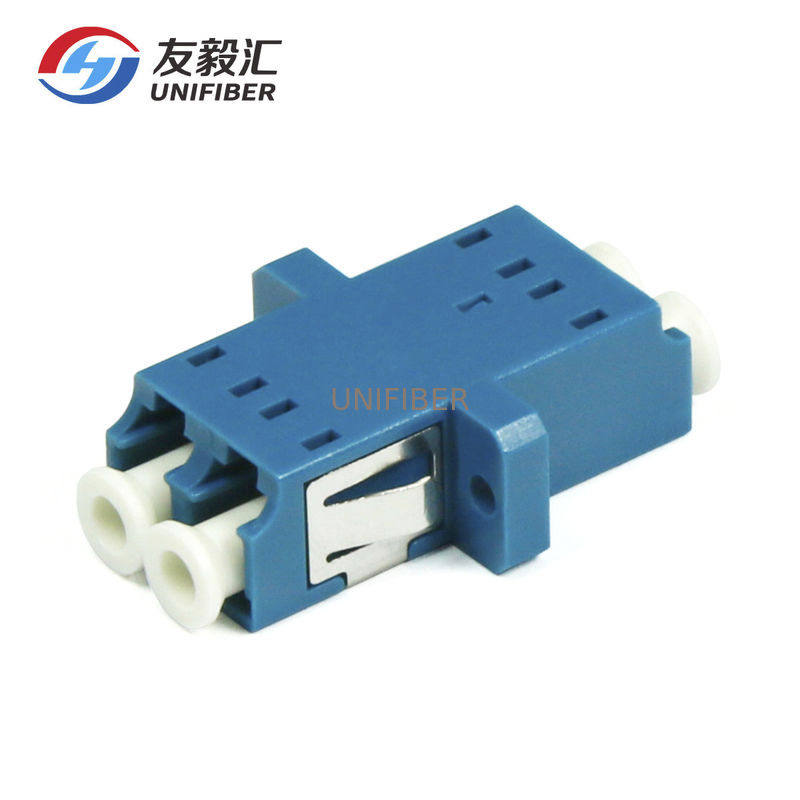

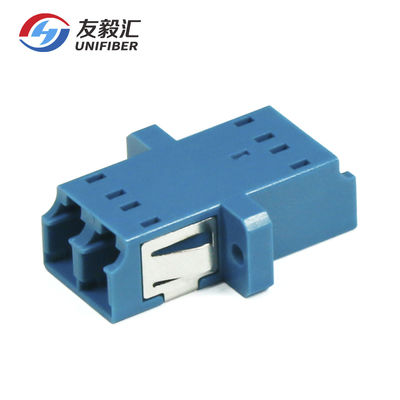

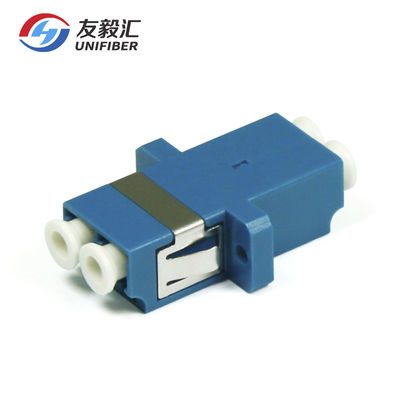

Product: | LC Duplex Single Mode Fiber Optic Coupler | Connector: | LC/UPC |
---|---|---|---|
Fiber Counts: | Duplex | Fiber Mode: | Single Mode |
Color: | Blue | Structure: | With Flange |
Package: | Blister Case | OEM: | Support |
High Light: | SC Footprint Fiber Optic Coupler,LC/UPC Fiber Optic Coupler,LC/UPC Single Mode Optic Coupler |
Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. UNIFIBER supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapter.
Features
High-precision Ceramic Sleeve
Low insertion loss and good durability
Good repeatability and changeability
Excellent temperature stability
SM or MM Optional
With/Without flange Optional
Simplex , Duplex or Quad Optional
LC/SC/FC/ST Type Optional
UPC or APC Optional
Applications
FTTH and FTTx
Fiber Optic Sensors
Testing Instruments
CATV System
Telecommunication Networks
Local Area Network
Performance Specifications
parameter | UPC | APC | UPC |
insertion loss | ≤0.2dB | ≤0.2dB | ≤0.2dB |
return loss | ≥50dB | ≥60dB | ≥30dB |
Durability | >1000 | ||
operatingtemperature | -40~75℃ | ||
storage temperature | -40~85℃ | ||
interchangeability | ≤0.2dB | ||
repeatability | ≤0.2dB |
