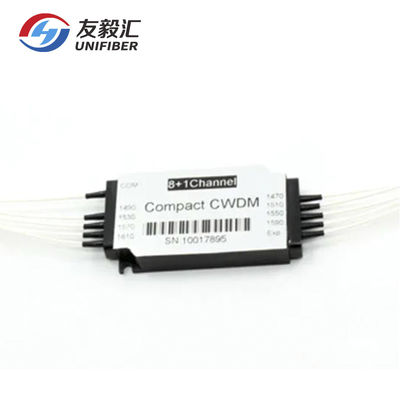

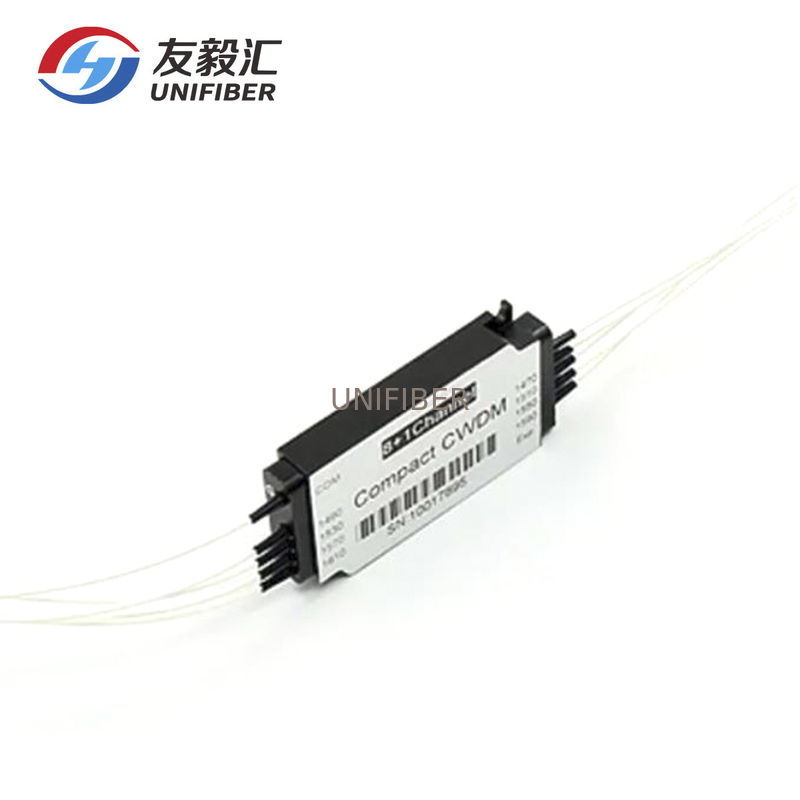

ABS Module 20nm FC/APC Cwdm Passive Mux Demux G657A1 Fiber

ABS Module 20nm FC/APC Cwdm Passive Mux Demux G657A1 Fiber
ABS Module 20nm FC/APC Cwdm Passive Mux Demux G657A1 Fiber ABS Module 20nm FC/APC Cwdm Passive Mux Demux G657A1 Fiber

Large Image :  ABS Module 20nm FC/APC Cwdm Passive Mux Demux G657A1 Fiber

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: 8 channel compact cwdm
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Product: 8+1 Channel Compact Cwdm Passive Mux Demux ABS Module FC/APC Package Type: Mini ABS Module
Fiber Type: G657A1 Connector: FC/APC
Wavelength: 1470nm~1610nm Channels Space: 20nm
High Light:

FC/APC Cwdm Passive Mux Demux

,

20nm Cwdm Passive Mux Demux

,

G657A1 Fiber Wavelength Division Multiplexer

8+1 channel compact cwdm passive mux demux ABS module FC/APC

CWDM is the abbreviation for coarse wavelength division multiplexer. At its most basic the CWDM is a signal combiner. It combines multiple signals on laser beams at various wavelengths for transmission along a single optical line. This wavelength division multiplexer allows lights with wavelengths from 1270nm to1610nm to travel through 18 channels spaced 20nm apart. UNIFIBER CWDM products can be used ABS box or 1U Rack packaging.



FEATURES
Low insertion loss

High channel isolation
Ultra flat wide pass band
Epoxy free optical path

High stability and reliability

Widely operating wavelength range



APPLICATIONS
WDM system

System monitoring

Fiber optical amplifier
Transmitters and fiber lasers
Fiber optic instruments



Specification


ITEM
PARAMETER Unit
Output channel wavelength Range Customized:1270~1610 nm
Pass Channel wavelength Range Customized:1270~1610 nm
Reflect Channel wavelength Customized :1270~1610 nm
Insertion Loss Pass Channel <0.60 dB
Reflect channel <0.60 dB
Insertion Loss Ripple Pass Channel ≤0.30 dB
Reflect channel ≤0.30 dB
Isolation Pass Channel ≥40 dB
Reflect channel ≥20 dB
Return Loss >50 dB
Insertion Loss Temperature Sensitivity <0.005 dB/ºC
Polarization Dispersion Loss <0.10 dB
Polarization Mode Dispersion <0.10 Ps
Directivity ≥50 dB
Max Power Handling 300 mW
Operating Temperature -20~+70 °C
Storage Temperature -40~+85 °C
Fiber Type SMF-28e,Bare OR 0.9mm Loose Tube
Package Dimension ¢5.5XL32 OR ABS BOX mm



ABS Module 20nm FC/APC Cwdm Passive Mux Demux G657A1 Fiber 0ABS Module 20nm FC/APC Cwdm Passive Mux Demux G657A1 Fiber 1
