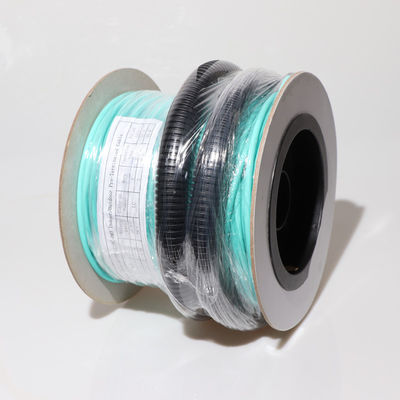

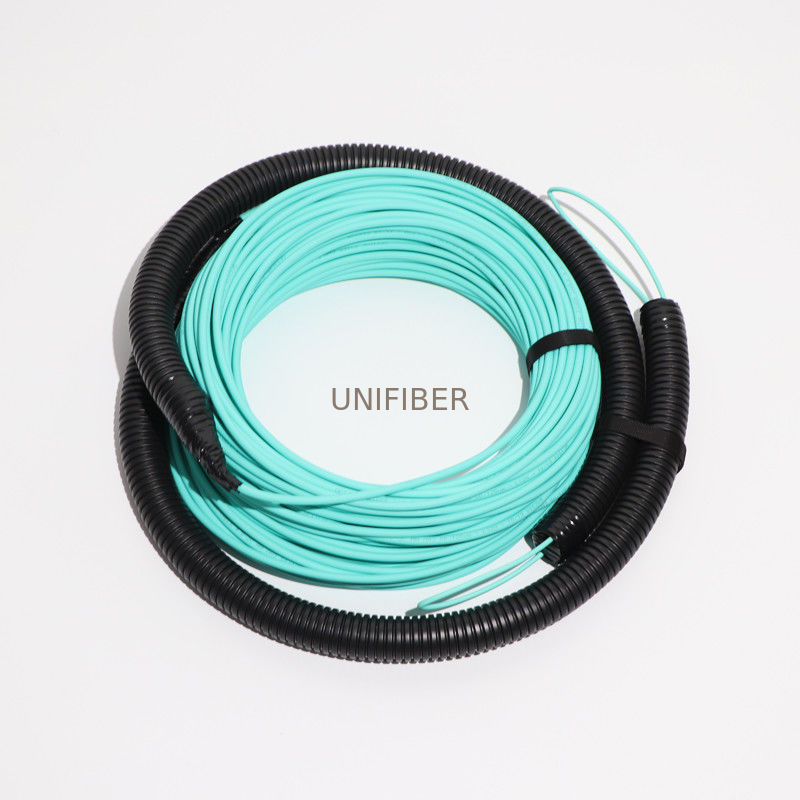

Pre Terminated 3.0mm OM4 Fiber Optic Cable Assemblies LC/UPC-LC/UPC

China Shenzhen Unifiber Technology Co.,Ltd certification
China Shenzhen Unifiber Technology Co.,Ltd certification
I'm Online Chat Now

Pre Terminated 3.0mm OM4 Fiber Optic Cable Assemblies LC/UPC-LC/UPC

Pre Terminated 3.0mm OM4 Fiber Optic Cable Assemblies LC/UPC-LC/UPC
Pre Terminated 3.0mm OM4 Fiber Optic Cable Assemblies LC/UPC-LC/UPC Pre Terminated 3.0mm OM4 Fiber Optic Cable Assemblies LC/UPC-LC/UPC Pre Terminated 3.0mm OM4 Fiber Optic Cable Assemblies LC/UPC-LC/UPC Pre Terminated 3.0mm OM4 Fiber Optic Cable Assemblies LC/UPC-LC/UPC

Large Image :  Pre Terminated 3.0mm OM4 Fiber Optic Cable Assemblies LC/UPC-LC/UPC

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: Pulling Eye Pre-Terminated Fiber Optic Cable Aseemblies
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Product: Pulling Eye Pre-Terminated Fiber Optic Cable Assemblies No Of Fiber: 4,6, 8,12,24,36,48
Fiber Type: SM/MM/OM3/OM4/OM5 Break-out Diameter: 3.0mm
Connector: LC/UPC Jacket: Plenum
High Light:

OM4 Fiber Optic Cable Assemblies

,

3.0mm Fiber Optic Cable Assemblies

,

LC/UPC Pre Terminated Cable Assembly

All our Pre-Terminated Fiber Optic Cable Assemblies are custom made to specific requirements,it comes as 2, 4, 6, 8,12 or 24 strand fiber counts, in Multimode OM1, OM2, OM3 and OM4 or Singlemode! With optional pulling eyes installed at factory to protect the break-out ends during the pull.


FEATURES

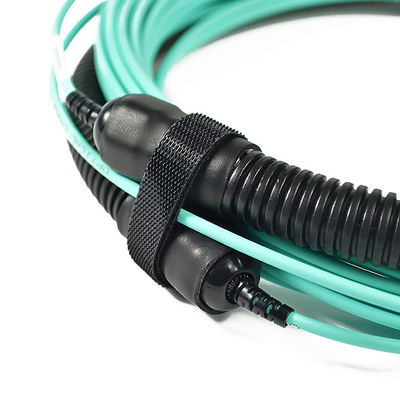

Optional pulling eyes to protect the break-out ends and reduce installation time

4F,6F,8F,12F, 24F, 48F, 72F, 96F, 144F, customized products are available

Jacket material: LSZH, OFNR, OFNP available

100% pre-terminated and tested in factory


APPLICATION
Data communication network

High density architectures

Optical System Access network

Storage area networking

fiber channel

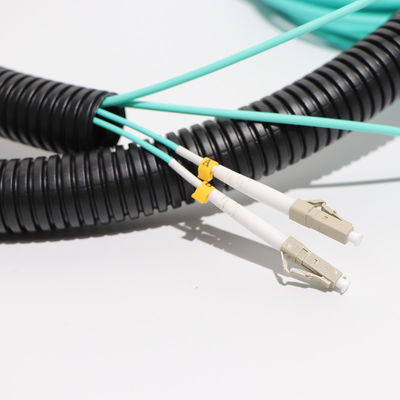

Connector LC to LC Break-out legs 2.0/3.0mm
Fiber Mode 9/125μm or 50/125um Jacket Color Yellow/Aqua or Violet
Polish PC to PC Wavelength 1310/1550nm
Fiber Counts 4F,6F,8F,12F, 24F, 48F, 72F, 96F, 144F Jacket Material LSZH, OFNP
Insertion loss ≤0.3dB(max) Interchangeability ≤0.2dB
Return loss ≥50dB(min) Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C
Polarity A(Tx) to B(Rx) Fiber Grade 9/125 50/125 OM3 OM4



Pre Terminated 3.0mm OM4 Fiber Optic Cable Assemblies LC/UPC-LC/UPC 0Pre Terminated 3.0mm OM4 Fiber Optic Cable Assemblies LC/UPC-LC/UPC 1Pre Terminated 3.0mm OM4 Fiber Optic Cable Assemblies LC/UPC-LC/UPC 2
